RadioHead

This is an ioBroker-Adapter to integrate a RadioHead network using a serial interface.

Current Release
1.4.0
Developer
Peter Müller
License
GPL-2.0-only

The adapter radiohead enables the connection of a RadioHead network to ioBroker.

The communication is done by a serial port. To use radio hardware you may setup a microcontroller (e.g. an Arduino nano) as a serial-radio gateway.

RadioHead is a open source Packet Radio library for embedded microprocessors. It provides addressed, reliable, retransmitted, acknowledged variable length messages.

Features

  • Receive messages/commands from other nodes in you local RadioHead network.
  • Send messages/commands to other nodes in you local RadioHead network.
  • Individually configurable objects for incoming and outgoing data.
  • Possibility to send RadioHead messages by scripts.
  • Possibility to evaluate received RadioHead messages by scripts.

If a message is received via the serial port which matches the pattern of an incoming data object, then the data will be extracted and written to the state of the object.

To send data the data is simply written to the state of an outgoing data object and the adapter will send it using the configured pattern.

Installation

The adapter is available in the stable repository and can be installed via admin or cli.

Alternatively, a latest version can be installed using the latest repository or the URL https://github.com/crycode-de/ioBroker.radiohead.git.

Configuration

The configuration screen consists of three tabs:

  • Main settings
  • Incoming data
  • Outgoing data

Main settings

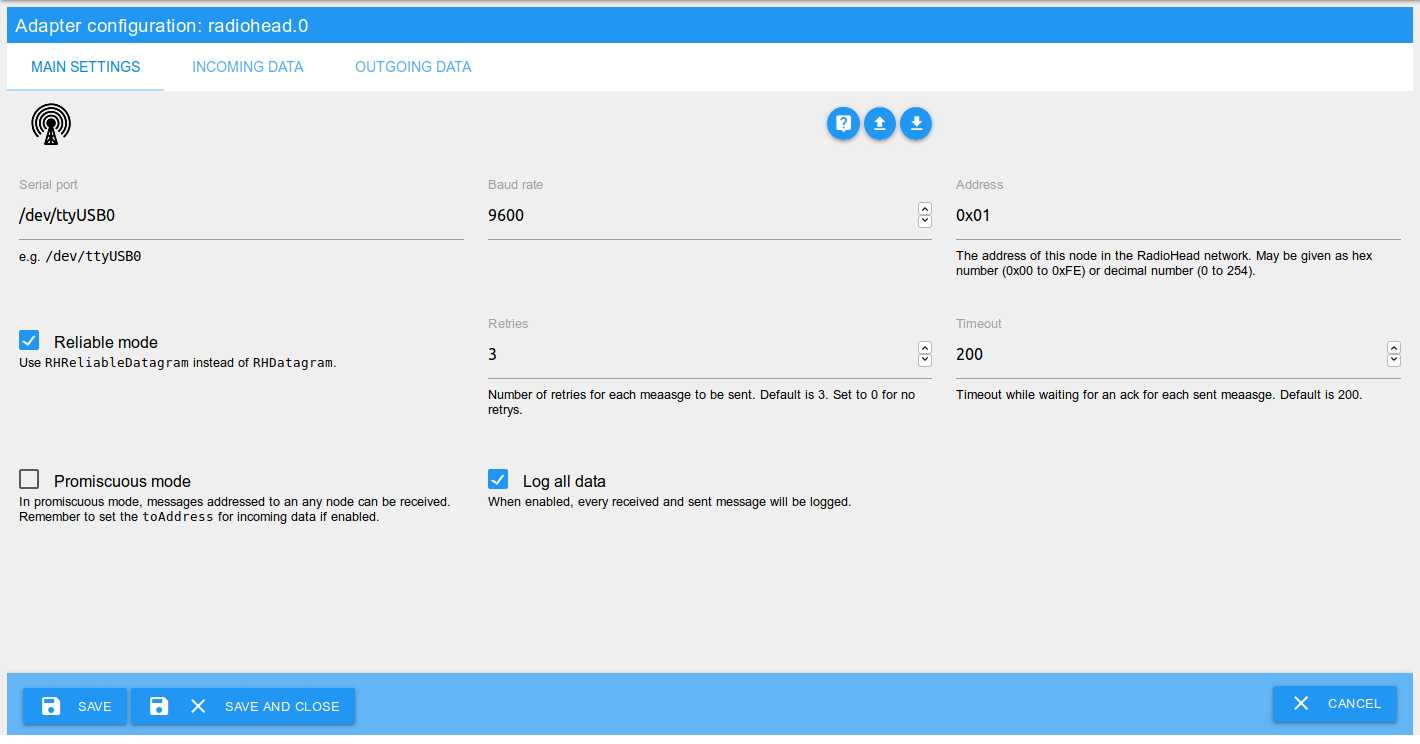

Main settings

Serial port

The serial port which is used for the RadioHead communication.

Examples:

  • /dev/ttyUSB0 (Linux)
  • COM1 (Windows)

Baud rate

The baud rate of the communication. This should be the same on every node in the RadioHead network.

Default is 9600.

Address

The address of the ioBroker adapter in the RadioHead network.

May be given as hex number (0x00 to 0xFE) or decimal number (0 to 254). Using 0xFF (respectively 0) is not possible, because this is the broadcast address.

Reliable mode

When using the reliable mode, for every sent message an acknowledgment (ACK) is expected. If a message is not acknowledged within the given timeout, it will be send again.

If enabled RHReliableDatagram will be used instead of RHDatagram.

Retries

Number of retries for each message to be sent if no acknowledgment is received.

Default is 3. Set to 0 for no retries.

Timeout

Timeout while waiting for an acknowledgment for each sent message.

Default is 200.

Promiscuous mode

In promiscuous mode, messages addressed to an any node can be received.

Remember to set the toAddress for incoming data if enabled.

Log all data

When enabled, every received and sent message will be logged.

Incoming data

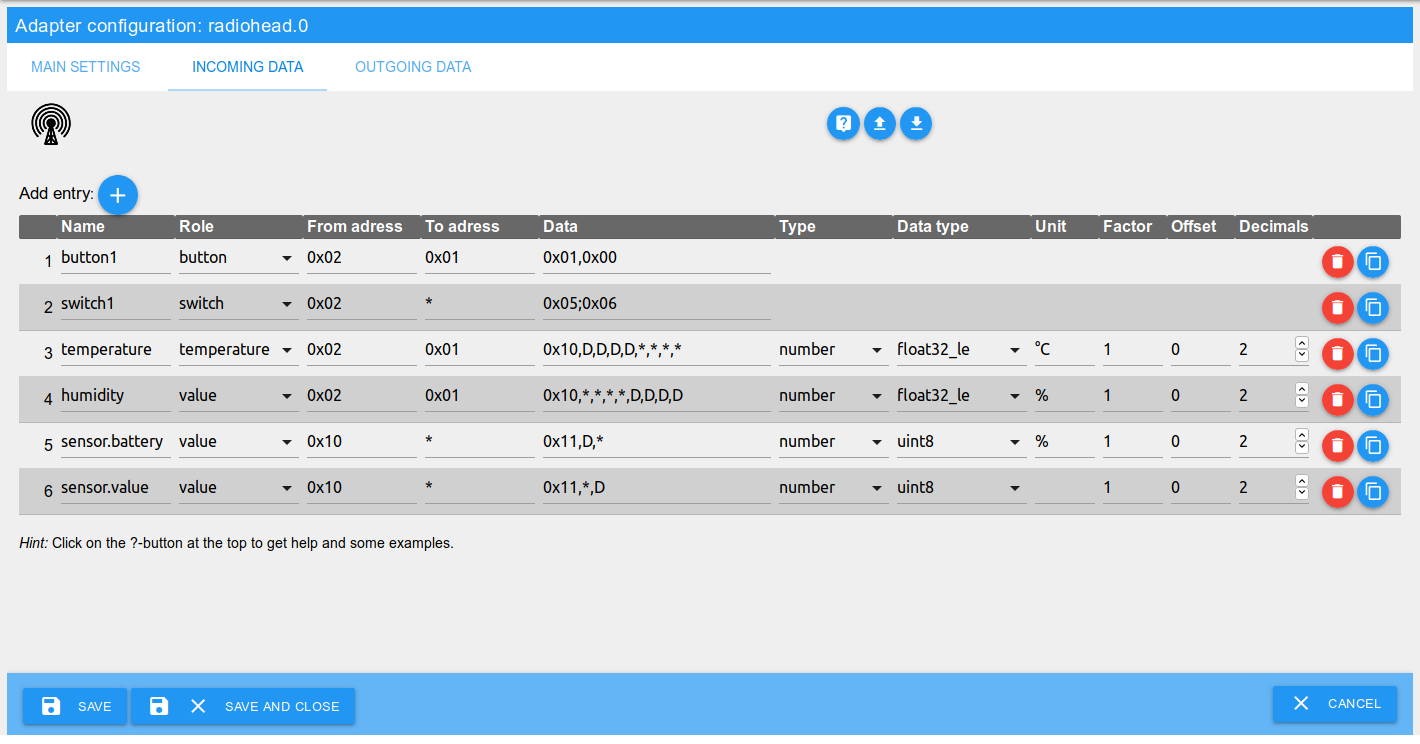

Incoming data

Name

The name of the ioBroker object. Must be unique for incoming data of this adapter instance.

It's possible to create groups by using dots in the name.

For each record an object like radiohead.<instance>.data.in.<name> will be created.

Role

The role of the data is important for the processing of the received data.

Switches, buttons and indicators are evaluated as booleans. All other roles are evaluated as numeric values by extracting them out of the received buffer.

From address

The address of the sender of the message in the RadioHead network.

May be given as hex number (0x00 to 0xFE) or decimal number (0 to 254). It's also possible to use a * to allow any from address.

To address

The address of the receiver of the message in the RadioHead network.

May be given as hex number (0x00 to 0xFF) or decimal number (0 to 255). It's also possible to use a * to allow any to address.

Hint: With disabled promiscuous mode, only messages addressed to the own address or the broadcast address 0xFF (255) can be received.

Data

This is the data of the received message as individual comma separated bytes. Based on this data, a received message is analyzed and processed.

May be given as hex number (0x00 to 0xFF) or decimal number (0 to 255). As a wildcard for any byte a * can be used.

Data bytes to be extracted for the received value must be marked with a large D so that the data is recognized during processing. The number of consecutive D bytes depends on the selected data type.

Special cases switch and indicator:

For switches and indicators, two groups of data bytes separated by a semicolon can be specified. The first group is for the true value and the second for the false value. If only one group is specified, the current state is toggled on receiving.

Examples:

  • Fixed byte 0x10, 32-bit float number, 4 arbitrary bytes: 0x01,D,D,D,D,*,*,*,*
  • Two fixed bytes for a button: 0x01,0x00
  • Two groups of one byte each for a switch: 0x05;0x06

Type

This is the type of the data in ioBroker. Possible options are number and boolean. When using boolean, the received value will be converted into a boolean value (true or false).

Data type

The data type defines the type of data received and thus also the reading method from the data bytes.

See Datatypes.

Unit

The unit of the value in ioBroker.

Factor und Offset

A factor that multiplies the received value and adds an offset to it.

value = (value * factor) + offset

Decimals

Number of decimals to which a received value is rounded (after factoring and offset calculation).

Outgoing data

Outgoing data

Name

The name of the ioBroker object. Must be unique for outgoing data of this adapter instance.

It's possible to create groups by using dots in the name.

For each record an object like radiohead.<instance>.data.out.<name> will be created.

Role

The role of the data is important for the processing of the data to send.

Switches, buttons and indicators are send as booleans. All other roles are send as numeric values by embedding them into the buffer to send.

To address

The address of the receiver of the message in the RadioHead network.

May be given as hex number (0x00 to 0xFF) or decimal number (0 to 255).

For broadcast messages use the address 0xFF (255).

Data

This is the data of the message to send as individual comma separated bytes. Based on this data, a message to send is build.

May be given as hex number (0x00 to 0xFF) or decimal number (0 to 255).

The bytes where the value to send should be inserted must be marked with a large D. The number of consecutive D bytes depends on the selected data type.

Special cases switch and indicator:

For switches and indicators, two groups of data bytes separated by a semicolon can be specified. The first group is for the true value and the second for the false value. If only one group is specified, this group will be send every time.

Examples:

  • Fixed byte 0x42, 16-bit integer: 0x42,D,D
  • Two fixed bytes for a button: 0x01,0x02
  • Two groups of two bytes each for a switch: 0x01,0x00;0x01,0xFF

Type

This is the type of the data in ioBroker. Possible options are number and boolean. When using boolean, the value to send will be converted into 0x01 (true) or 0x00 (false).

Data type

The data type defines the type of data to send and thus also the writing method into the data bytes.

See Datatypes.

Unit

The unit of the value in ioBroker.

Datatypes

The following data types are available when receiving and sending data:

Data typeDescriptionValue rangeData bytes
int8Signed 8-bit integer-128 to 1271
uint8Unsigned 8-bit integer0 to 2551
int16_le, int16_beSigned 16-bit integer0 to 327672
uint16_le, uint16_beUnsigned 16-bit integer0 to 655352
int32_le, int32_beSigned 32-bit integer0 to 42949672954
uint32_le, uint32_beUnsigned 32-bit integer0 to 42949672954
float32_le, float32_be32-bit floating point number-3.4E+38 to +3.4E+38, 7 Decimals4
double64_le, double64_be64-bit floating point number-1.7E+308 to +1.7E+30, 16 Decimals8

The endings _le and _be each designate the byte order for the data types with more than one byte. This depends on how the remote node sends or processes the data.

  • _le - little-endian: least significant byte first
  • _be - big-endian: most significant byte first

Using in scripts

It's possible to send RadioHead messages or process received RadioHead messages in scripts.

Sending with a script

For sending via a script the function sendTo can be used.

Example:

sendTo('radiohead.0', 'send', {
    to: 0x02, // to address
    data: [0x01,0x02,255] // data bytes to send as an array or buffer
}, (ret) => {
    log('ret: ' + JSON.stringify(ret));
    // -> ret: {}
    if (ret.error) {
        log('error sending message', 'warn');
    }
});

If the message was not sent successfully, then ret.error is set to the corresponding error.

Evaluate received messages in a script

For each received message, the object radiohead.<instance>.data.incoming is updated and the value is set to an object with the received data. This change can be evaluated accordingly.

Example:

on({id: "radiohead.0.data.incoming", change:'any'}, (obj) => {
    log('incoming changed: ' + JSON.stringify(obj.state.val));
    // -> incoming changed: {"data":[1,0],"length":2,"headerTo":1,"headerFrom":2,"headerId":47,"headerFlags":0}
});

Adapter information

Each instance of the adapter provides the following information:

ObjectDescription
info.connectionIndicator if the adapter is connected to the serial port
info.lastReceivedTimestamp when the last RadioHead message was received
info.lastSentOkTimestamp when the last RadioHead message was sent successfully
info.lastSentErrorTimestamp when the last RadioHead message was sent faulty
info.receivedCountNumber of received RadioHead messages
info.retransmissionsCountNumber of retries while sending a message
info.sentErrorCountNumber of faulty sent messages
info.sentOkCountNumber of successfully sent messages

If necessary, the counters of the messages can be reset to 0 by writing to the object actions.resetCounters.

Changelog

1.4.0 (2025-11-01)

  • (crycode-de) Node.js >= 20, js-controller >= 6.0.11, Admin >= 7.6.17 required
  • (crycode-de) Updated to latest ioBroker adapter toolset
  • (crycode-de) Updated dependencies and fixed resulting issues
  • (crycode-de) Updated Sentry DSN

1.3.0 (2022-01-07)

  • (crycode-de) Handling of serial port close events
  • (crycode-de) Try to reinitialize the serial port on close/errors
  • (crycode-de) Fixed spelling of indicator role
  • (crycode-de) Log messages now starts with an uppercase letter
  • (crycode-de) Debug log RHS version on adapter startup
  • (crycode-de) Some internal refracturing
  • (crycode-de) Updated dependencies

1.2.0 (2021-09-17)

  • (crycode-de) Use stringified json for data.incoming state

1.1.1 (2021-01-09)

  • (crycode-de) Small fixes
  • (crycode-de) Updated dependencies

1.1.0 (2020-12-23)

  • (crycode-de) Added Sentry error reporting
  • (crycode-de) Updated dependencies
  • (crycode-de) Compatibility with Node.js 14.x
  • (crycode-de) Optimized npm package

1.0.7 (2020-06-01)

  • (crycode-de) Fixed bug on deleting incoming data entries.

1.0.5 (2020-04-14)

  • (crycode-de) Fixed bug in grouping in/out data.
  • (crycode-de) Added missing translations.
  • (crycode-de) Fixed bug with promiscuous mode.
  • (crycode-de) Updated dependencies.

1.0.4 (2020-02-03)

  • (crycode-de) Updated connectionType and dataSource in io-package.json.

1.0.3 (2020-01-23)

  • (crycode-de) Better handling of changed objects in admin.
  • (crycode-de) Added connectionType in io-package.json and updated dependencies.

1.0.2 (2019-09-08)

  • (crycode-de) dependency updates and bugfixes

1.0.1 (2019-07-30)

  • (crycode-de) license update

1.0.0 (2019-07-28)

  • (crycode-de) initial release
