VIS-2 weather and heating widgets

VIS-2 weather and heating widgets

Current Release
1.5.0
Developer
rg-engineering
License
MIT
logo

ioBroker.vis-2-widgets-weather-and-heating

If you like it, please consider a donation:

paypal

weather

This vis-2-widget shows weather forecast data from DasWetter.com or weatherunderground. You need DasWetter-Adapter or weatherunderground-Adapter running on your system.

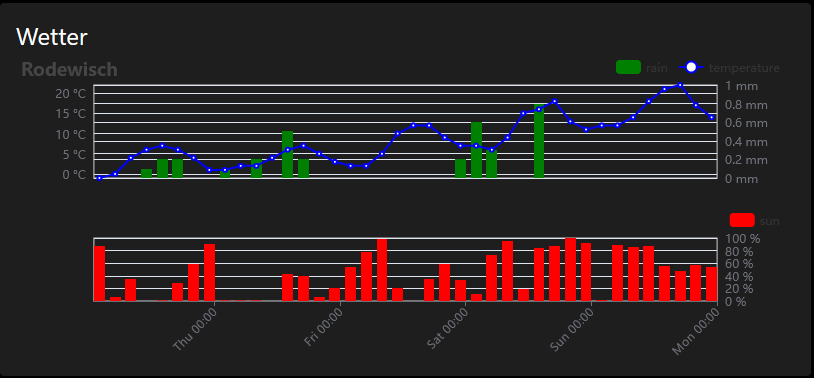

weather


  • OID's are automatically set based on general settings
  • x axis labels can be configured according momentjs docu

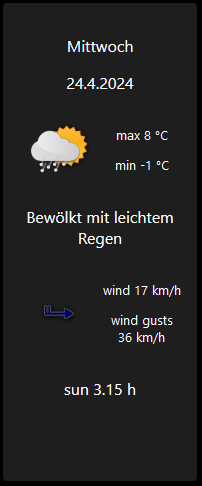

weather day


  • OID's are automatically set based on general settings
  • icon sets are changeable

Meteored weather widget

see METEORED for more information.

You must create your widget on METEORED and get the ID for the widget. This ID must be set in the widget settings here. Do not forget to whitelist your domain in METEORED settings. In my case I had to whitelist https://192.168.xxx.xxx:8082 to get the widget running.


general chart


input data for general chart

  • "OID data serie" should point to data point like sbfspot.0.xxxxxxxx.history.years
  • data point should contain key / value pairs like

[{"year":"2008","value":7000},{"year":"2009","value":2309000},{"year":"2010","value":4445000},{"year":"2011","value":7019000},{"year":"2012","value":9371000},{"year":"2013","value":11393000},{"year":"2014","value":13666000},{"year":"2015","value":16034000},{"year":"2016","value":17826790}]

  • it's possible to auto calculate and show differences of values. Just tick "difference calculation" in settings.

  • it supports adapter sbfspot and ebus: just select instance, and basic adjustments are done automatically

heating (widgets for HeatingControl adapter)

Based on Pittini's project for old VIS there are similar widgets available for VIS-2 now.

Room Overview


Heating Time Schedule


General Parameter


Room


Room Profile Paeameter


Window Status Overview


Changelog

1.5.0 (2026-09-13)

  • (René) new widget "inform landloard" added, to send messages to landlord
  • (René) dependencies updated

1.4.3 (2026-07-05)

  • (René) dependencies updated

1.4.2 (2026-06-05)

  • (René) see #264: decimal places for temperature values can now be configured in weather day widget
  • (René) decimal places for Y axis can now be configured in SourceAnalytics bar graph widget
  • (René) #263: bug fix to switch color for datepicker in dark mode

1.4.0 (2026-05-26)

  • (René) see #174: unused empty space in weather widget removed
  • (René) dependencies updated

1.3.0 (2026-01-03)

  • (René) dependencies updated
  • (René) update echarts@6.0.
  • (H5N1v2) 41 icons for DasWetter@4.x (galeria7)
  • (René) optimisations based on mui@7.x in WeatherDay-widget
  • (René) weather widget shows now min and max temperature (if values available)
