MQTT client | ioBroker

Versions

Publish and subscribe ioBroker states to MQTT Brokers

Sentry

This adapter uses Sentry libraries to automatically report exceptions and code errors to the developers. For more details and for information how to disable the error reporting see Sentry-Plugin Documentation! Sentry reporting is used starting with js-controller 3.0.

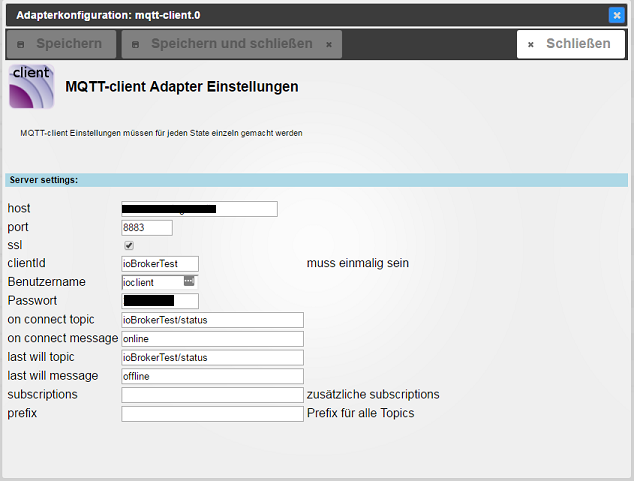

Adapter Settings

Adapter

on connect topic and message

The on connect message is published to the on connect topic every time the client connects or reconnects to the server.

on disconnect topic and message

The on disconnect message is published to the on disconnect topic when the adapter stops gracefully.

last will topic and message

The last will message is published to the last will topic every time the client connects or reconnects to the server. The Server will store this message and send it to its subscribers when the client disconnects unexpectedly.

subscriptions

Comma separated list of topics that are not covered by existing states. Received messages are converted to states within the adapter's namespace (e.g. mqtt.0) and subscribed. You can remove topics after all states have been created.

split JSON into states for topics

Comma separated list of MQTT topic filters (without prefix, + and # are allowed), e.g. zigbee2mqtt/+. A JSON object received on a matching topic is not stored as text, but split into a channel with one state per value. zigbee2mqtt/sensor = {"battery":100,"occupancy":false,"color":{"x":0.3}} creates the channel mqtt-client.0.zigbee2mqtt.sensor with the states battery (number), occupancy (boolean) and the channel color with the state x (number).

Nested objects become channels (up to 5 levels), arrays are stored as JSON text.
Dots, whitespace and characters that are not allowed in IDs are replaced by _ in the IDs.
Values written in ioBroker (ack=false) are sent as JSON to <topic>/set, e.g. {"color":{"x":0.5}} - this is the convention of zigbee2mqtt. The device confirms the new value with its next message.
Payloads that are no JSON object (arrays, numbers, text) are handled as before.

The topics still have to be subscribed, e.g. with zigbee2mqtt/# in the additional subscriptions. States that older versions created as text for these topics are not changed and can be deleted.

publish prefix

When publishing this will be prepended to all topics. Default is empty (no prefix).

subscribe prefix

When subscribing this will be prepended to all topics. Default is empty (no prefix).

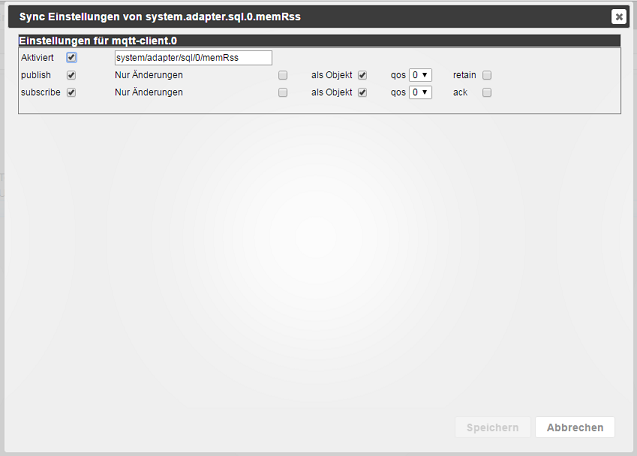

State Settings

State

enabled

Enables or disables the mqtt-client functionality for this state. Disabling will delete any mqtt-client settings from this state.

topic

The topic this state is published to and subscribed from. default: state-ID converted to a mqtt topic.

When the topic is derived from the state-ID, dots are converted to topic level separators (/) and the following characters are replaced by _:

the mqtt wildcards + and # - they are not allowed in topic names (used e.g. by shelly IDs like shelly.0.SHSW-1#B96701#1)
slashes contained in the ID itself - they would create additional topic levels
whitespace - it must not end up in object IDs when the topic is converted back

So shelly.0.SHSW-1#B96701#1.Relay0.Switch becomes shelly/0/SHSW-1_B96701_1/Relay0/Switch. If two state-IDs derive to the same topic (e.g. a#b and a+b), a warning is logged. Configure an explicit topic for one of them in this case.

publish

enable state will be published
changes only state will only be published when its value changes
as object whole state will be published as object
qos see http://www.hivemq.com/blog/mqtt-essentials-part-6-mqtt-quality-of-service-levels
retain see http://www.hivemq.com/blog/mqtt-essentials-part-8-retained-messages

enable topic will be subscribed and state will be updated accordingly
changes only state will only be written when the value changed
as object messages will be interpreted as objects
qos see http://www.hivemq.com/blog/mqtt-essentials-part-6-mqtt-quality-of-service-levels
ack on state updates the ack flag will be set accordingly

Note

when ack is set to true it will overwrite objects ack, see as object
to prevent message loops, if both publish and subscribe are enabled changes only is always on for subscribe

Changelog

4.1.0 (2026-09-15)

(@GermanBluefox) Adapter requires node.js >= 22.19 now
(@Tarvion) Automatically derived topics no longer contain the mqtt wildcards + and # (as used by shelly IDs), slashes or whitespace taken from the state-ID. These characters are replaced by _ now
(@GermanBluefox) A warning is logged if two states derive to the same topic
(@GermanBluefox) Adapter icon converted to SVG
(@GermanBluefox) The adapter was refactored to TypeScript
(@GermanBluefox) Fixed: stopping the adapter waited for the timeout when no broker was configured or after stopInstance
(@GermanBluefox) Fixed: states created from received topics now have common.role instead of a role outside of common
(@GermanBluefox) Fixed: with "subscribe as object", the loop protection and "changes only" skipped changed values instead of unchanged ones
(@GermanBluefox) Fixed: deleting a state that was published with retain now also removes the retained message from the broker
(@GermanBluefox) Fixed: MQTT version 3 connects with the protocol name MQIsdp, so MQTT 3.1 brokers accept the connection. The versions are labeled 3.1, 3.1.1 and 5.0 in the settings (#169)
(@GermanBluefox) Fixed: special characters like % or : in the user name, password or client ID broke the connection (#200)
(@GermanBluefox) New option "split JSON into states for topics": JSON objects, e.g. from zigbee2mqtt, become a channel with one state per value; written values are sent to <topic>/set (#322)
(@GermanBluefox) Fixed: a subscribed state was not updated after a restart when an object of the adapter's namespace had the same topic. Changing the topic of a state now also unsubscribes the old topic, and no copy of a state is created for an old topic anymore (#418)
(@GermanBluefox) Fixed: every change of an object (e.g. extendObject by another adapter) published the current value of the state again, which could overwrite a newer value on the same topic. The value is now published once only when publishing starts or the topic changes (#467)

4.0.0 (2026-05-05)

(copilot) Adapter requires node.js >= 22 now
(copilot) Adapter requires admin >= 7.7.22 now
(copilot) Adapter requires js-controller >= 6.0.11 now
(@klein0r) Updated dependencies

3.0.0 (2025-01-24)

(@klein0r) Breaking change: Underscores are not replaced by spaces in the corresponding topic anymore

2.1.0 (2024-11-12)

(mcm1957) Adapter requires node.js 20 now.
(mcm1957) Adapter requires js-controller 5.0.19 and admin 6.17.14 now.
(simatec) Adapter changed to meet Responsive Design rules.
(mcm1957) Dependencies have been updated.

2.0.1 (2024-09-23)

(@klein0r) Added missing information in configuration dialog
(@klein0r) Fixed type of port configuration to avoid conflicts
