Vis 2 Widgets Sigenergy

vis-2-widgets-sigenergy adapter for ioBroker

VIS-2 widget set for the Sigenergy energy storage adapter (ioBroker.sigenergy). Contains 8 widgets for visualisation and control of energy flow, battery status, real-time power, daily statistics, AC charger, DC charger, inverter and SigenMicro micro-inverter overview.

Requirements

ioBroker with the sigenergy adapter installed and configured
ioBroker VIS-2 adapter (≥ 2.0.0)

Widgets

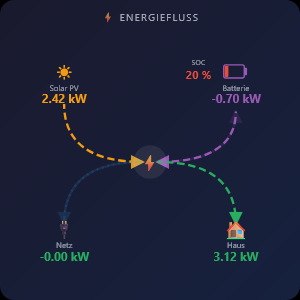

Energy Flow Diagram

Displays the current energy flow between solar panels, battery, grid and house as an animated SVG diagram. Animated arrows visualise active connections in real time.

OIDs: pvPower, essPower, gridActivePower, housePower, essSoc

Flow directions

Data point	Value > 0	Value < 0
`essPower`	Battery charging → arrow from centre to battery	Battery discharging → arrow from battery to centre
`gridActivePower`	Grid consumption → arrow from grid to centre	Grid feed-in → arrow from centre to grid
`pvPower`	PV producing → arrow from PV to centre	—
`housePower`	House consuming → arrow from centre to house	—

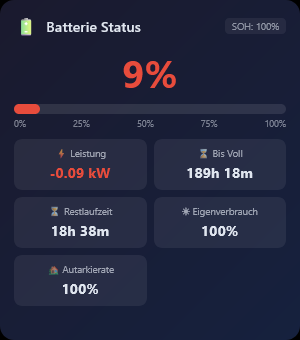

Battery Status & Forecasts

Displays SOC, SOH, charging power and forecasts for time to full charge, remaining runtime, self-consumption and autarky rate.

OIDs: essSoc, essSoh, essPower, batteryTimeToFull, batteryTimeRemaining, selfConsumptionRate, autarkyRate

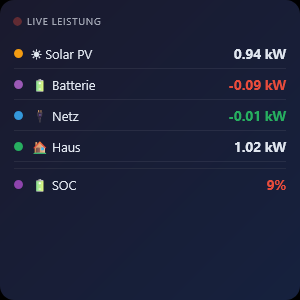

Real-Time Power

Compact list view of all current power values with colour-coded direction indicators.

OIDs: pvPower, essPower, gridActivePower, housePower, essSoc

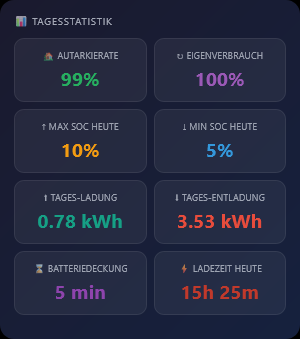

Energy Statistics

Daily overview with autarky rate, self-consumption, SOC history, charge/discharge energy and battery coverage.

OIDs: autarkyRate, selfConsumptionRate, dayMaxSoc, dayMinSoc, essDailyChargeEnergy, essDailyDischargeEnergy, batteryCoverageToday, batteryDailyChargeTime

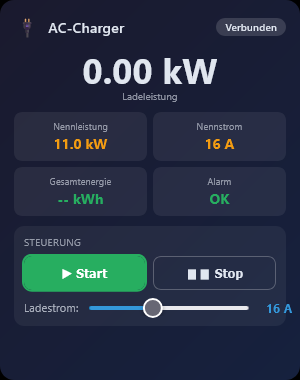

AC Charger (Sigen EVAC)

Monitoring and control of the Sigenergy AC charger (EVAC). Shows charging power, system state, rated power, rated current and total energy consumed. Alarms are highlighted in colour. The state badge shows the simplified charging state according to IEC 61851-1 (Initialising, Free, Connected, Charging, Error); hovering over it reveals a detailed explanation of the current state. The charging current can be set directly via a slider (6 A up to the charger's rated current); the upper limit can additionally be capped with the widget setting sig_maxCurrent. While charging is active, the Start button is locked and the Stop button is highlighted.

OIDs: acCharger.systemState, acCharger.chargingPower, acCharger.totalEnergyConsumed, acCharger.ratedPower, acCharger.ratedCurrent, acCharger.alarm1/2/3, acCharger.control.startStop, acCharger.control.outputCurrent

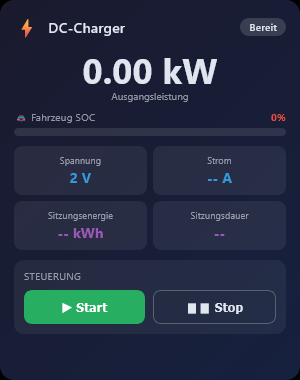

DC Charger

Monitoring and control of the Sigenergy DC charger. Shows output power, vehicle SOC with progress bar, vehicle battery voltage, charging current and the energy and duration of the current charging session. The state badge shows the operating state of the charging station (dcCharger.runningState: free, connected/preparing, scheduled, charging, discharging, ended, warning, fault/unavailable); hovering over it reveals a detailed explanation. While charging or discharging is active, the Start button is locked and the Stop button is highlighted. If the state OID is not set, it is derived from the output power OID; without a state value the badge falls back to the output power and the tooltip explains why, depending on the protocol version detected by the adapter.

OIDs: dcCharger.runningState, dcCharger.outputPower, dcCharger.vehicleSoc, dcCharger.vehicleBatteryVoltage, dcCharger.chargingCurrent, dcCharger.currentChargingCapacity, dcCharger.currentChargingDuration, dcCharger.control.startStop, info.protocolVersion (oid_protocol)

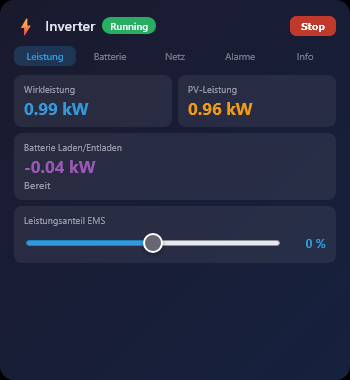

Inverter

Comprehensive monitoring and control of the inverter with tab navigation. Displays operating state, power data, battery temperatures, phase voltages, all 5 alarm registers and device information (model, serial number, firmware).

Tab	Content
Power	Active power, PV power, battery charge/discharge power, power share slider (−100 % to +100 %)
Battery	SOC & SOH with bars, avg. cell temperature/voltage, max./min. temperature
Grid	Phase voltages L1/L2/L3, grid frequency, power factor, PCS internal temperature
Alarms	5 alarm registers (PCS ×2, ESS, gateway, DC charger) with hex code and colour marking
Info	Model type, serial number, firmware version, Remote-EMS toggle

OIDs: inverter.activePower, inverter.pvPower, inverter.essChargeDischargePower, inverter.runningState, inverter.essBatterySoc/Soh, inverter.essAvgCellTemperature/Voltage, inverter.phaseA/B/CVoltage, inverter.gridFrequency, inverter.pcsInternalTemp, inverter.alarm1–5, inverter.firmwareVersion, inverter.modelType, inverter.serialNumber, inverter.control.startStop, inverter.control.remoteEmsDispatchEnable, inverter.control.activePowerPercent

PV Power

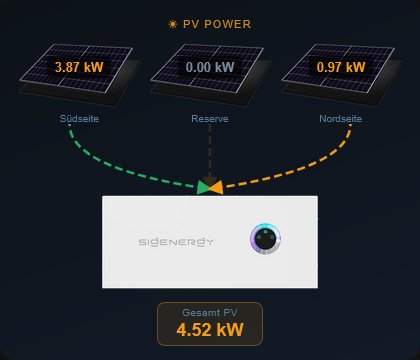

Display of up to 3 PV strings with live power values and animated flow arrows leading to the hybrid inverter. Arrow colours change dynamically based on power level (orange <1 kW, yellow <2 kW, green >2 kW).

Widget settings

Parameter	Type	Default	Description
oid_pv1 … oid_pv3	OID	sigenergy.0.plant.pv1Power … pv3Power	PV string power OIDs
oid_pvtotal	OID	sigenergy.0.plant.pvPower	Total PV power OID
sig_title	text	PV Power	Widget title
sig_name1 … sig_name3	text	String 1 … String 3	Configurable names per string
sig_darkmode	checkbox	true	Dark / Light mode

PV Power

OIDs: plant.pv1Power, plant.pv2Power, plant.pv3Power, plant.pvPower

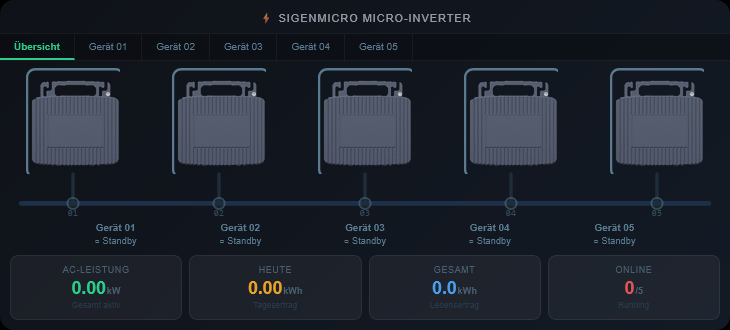

SigenMicro Overview

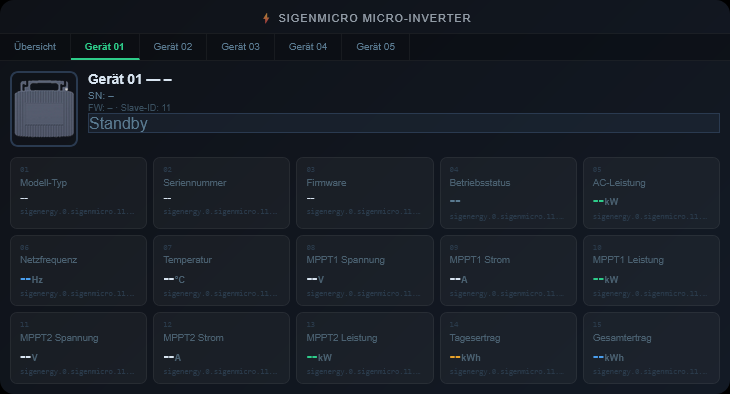

Overview and detail view of all SigenMicro micro-inverters connected via Modbus. Tab 1 shows all devices as an animated network segment (Ethernet bus topology with vertical drop lines). Each additional tab shows all 15 registers of the respective device in ascending order.

Tab	Content
Overview	All devices as animated bus topology, aggregate tiles (total power, daily yield, lifetime yield, online count)
Device 01–20	Device image top-left (10 px offset), model/serial/firmware/status badge, all 15 registers (01–15) with value, unit and OID path

Network segment animation

The horizontal backbone line and the vertical drop lines show animated dashes that flow along the cables when a device is active (Running). Inactive devices (Standby/Fault) show only the dark base line without animation.

Dynamic layout

Devices	Rows	Image size
1–5	1 row	80 × 90 px
6–10	1 row	52 × 60 px
11–15	2 rows	46 × 52 px
16–20	2 rows	40 × 46 px

Widget settings

Parameter	Type	Default	Description
micro_count	number (1–20)	3	Number of micro-inverters to display
sig_title	text	SigenMicro Micro-Inverter	Widget title
sig_darkmode	checkbox	true	Dark / Light mode
oid_micro1 … oid_micro20	OID	—	Anchor OID per device (e.g. sigenergy.0.sigenmicro.11.outputPower)

OIDs (per device, prefix sigenergy.0.sigenmicro.): modelType, serialNumber, firmwareVersion, runningState, outputPower, gridFrequency, temperature, mppt1Voltage, mppt1Current, mppt1Power, mppt2Voltage, mppt2Current, mppt2Power, dailyYield, totalYield

Vehicle Charge Level (EV SOC)

Displays a configurable vehicle image (e.g. Fiat 500e) as the central visual element. A colour-coded badge in the top-right corner shows a lightning bolt, the current charge level in percent and the label "LADESTAND". A progress bar at the bottom reflects the current SOC. When the optional charging state is active, the badge emits a pulsing green glow.

Colour logic

Charge level	Colour
≤ 15 %	Red (#f87171)
≤ 35 %	Yellow (#fbbf24)
> 35 %	Green (#4ade80)

Widget settings

Parameter	Type	Default	Description
oid_ev_soc	OID	—	State of Charge 0–100
oid_charging	OID	—	Charging state (optional) — green glow when active
sig_title	text	Fahrzeug-Ladestand	Vehicle name shown below the image
sig_car_image	image	—	Vehicle image from ioBroker file browser (e.g. /vis-2/img/)
sig_darkmode	checkbox	true	Dark / Light mode

OIDs: oid_ev_soc, oid_charging

Appearance

All widgets support a light and dark mode, switchable via the widget setting Dark mode.

Changelog

1.8.11 (2026-09-12)

(ssbingo) CI: the package tests now run on Node.js 22, 24 and 26 (new adapter-tests job, repository checker #41); @iobroker/testing updated from 5.3.0 to 6.2.1

1.8.10 (2026-09-07)

(ssbingo) Removed the admin entry from globalDependencies: a widget set has no admin UI, so no admin version needs to be required (repository checker S1091)

1.8.9 (2026-09-07)

(ssbingo) DC charger: a station that marks its running state register as not valid no longer shows up as a red "Unbekannt" badge. The Sigenergy protocol signals "register not valid" by setting all bits, and a SigenStor EC with a DC charger answers that way for register 31513 while its neighbouring registers (rated power, PV yield, meters) read normally. The badge is now derived from the output power in that case and the tooltip states that this is neither an adapter nor a configuration problem
(ssbingo) DC charger: the raw sentinel 65535 is recognised as well, so the badge is also correct on adapter versions before 3.3.1, which pass the value through instead of reporting no value
(ssbingo) DC charger: new OID setting oid_protocol (default sigenergy.0.info.protocolVersion). The protocol version was previously derived from the instance prefix only, and such an OID is never subscribed by VIS, so vis.states stayed empty and the tooltip claimed "Protokollversion noch nicht erkannt" even though the adapter had detected V2.9 at startup. Declared as a regular /id attribute it is subscribed like every other OID
(ssbingo) DC charger: when the protocol version cannot be read, the tooltip no longer asserts that none was detected — it says the version is not readable here and points at the new setting
(ssbingo) DC charger: reworded the tooltip shown when the adapter reports no state although the device announces protocol V2.8 or newer — it no longer claims an adapter update is needed, since the station itself may be marking the register as not valid

1.8.8 (2026-09-07)

(ssbingo) DC charger: if the state OID is not set, it is derived from the output power OID (…dcCharger.outputPower → …dcCharger.runningState), so widgets placed before 1.8.7 show the operating state without editing them
(ssbingo) DC charger: when no operating state is available, the tooltip explains why depending on the protocol version detected by the adapter (info.protocolVersion / info.protocolLevel): register 31513 requires Sigenergy protocol V2.8; with V2.8 or newer it points to the adapter log or an adapter update; negative output power is shown as discharging

1.8.7 (2026-09-07)

(ssbingo) DC charger: new state OID dcCharger.runningState (default) – the state badge now shows the operating state of the charging station (free, connected/preparing, scheduled, charging, discharging, ended, warning, fault/unavailable) with a detailed explanation as tooltip; without the OID the badge is derived from the output power as before
(ssbingo) DC charger: while charging or discharging is active, the Start button is locked and the Stop button is highlighted; negative output power (discharging) is shown in purple

1.8.6 (2026-09-07)

(ssbingo) AC charger: the tooltip on the state badge is now rendered as a separate popup with a fixed font size and opaque background, so it is readable regardless of widget size and is no longer overlapped by widget content
(ssbingo) AC charger: while charging is active, the Start button is locked and the Stop button is highlighted
(ssbingo) Widget set now reports the correct version in the browser console

1.8.5 (2026-09-07)

(ssbingo) AC charger: the charging current slider is now limited to the charger's rated current; new widget setting sig_maxCurrent for a manual upper limit (prevents Modbus errors when setting more than the rated current)
(ssbingo) AC charger: system state now covers all IEC 61851-1 states (0–7: initialising, free, connected, charging, error); hovering over the state badge shows a detailed explanation

1.8.4 (2026-09-04)

(ssbingo) Lowered minimum admin requirement to >=7.8.23 (admin 8 is no longer required)
(ssbingo) CI: locked ioBroker/testing-action-deploy to major version v1; fixed Dependabot auto-merge workflow
(ssbingo) Updated dependencies: @tsconfig/node22 22.0.6, @alcalzone/release-script-plugin-license 5.2.2

1.8.3 (2026-08-05)

(ssbingo) Declared minimum requirements: js-controller >=6.0.11, admin >=8.0.0, Node.js >=22
(ssbingo) Updated dependencies: actions/checkout 7.0.1, ioBroker/testing-action-deploy 1.5.2, @iobroker/testing 5.3.0

1.8.2 (2026-06-28)

(ssbingo) Updated CI actions: actions/checkout to v7.0.0, ioBroker/testing-action-deploy to v1.5.0

1.8.1 (2026-06-08)

(ssbingo) Fixed JSON syntax error in io-package.json; added widget screenshot to documentation

1.8.0 (2026-06-08)

(ssbingo) New widget: "Fahrzeug-Ladestand" — shows a configurable EV image with animated SOC bar, color-coded charge level (red/yellow/green), and optional blinking charging badge

1.7.9 (2026-05-27)

(ssbingo) Removed obsolete .eslintrc.json and .prettierignore

1.7.8 (2026-05-27)

(ssbingo) Added ESLint linting, updated CI to Node.js 24; adapter requires node.js >= 22

1.7.7 (2026-04-20)

(ssbingo) Text no longer distorts under non-uniform scaling — letters keep their proportions while containers continue to fill the widget area

1.7.6 (2026-04-20)

(ssbingo) Scaling is now non-uniform: width and height react independently to container changes, keeping both axes individually adjustable

1.7.5 (2026-04-20)

(ssbingo) Widget scaling now also reacts to height changes — content scales proportionally on both axes and is centered within the widget

1.7.4 (2026-04-20)

(ssbingo) All 9 widgets now scale their content responsively with the widget size (fonts, padding, SVG, images)

1.7.3 (2026-04-20)

(ssbingo) All 9 widgets now share a unified background based on the PV-Power widget design
