Vis 2 Widgets Energy

Vis 2 Widgets Energy

Current Release
2.0.1
Developer
bluefox
License
MIT

This widget set consists of the following widgets:

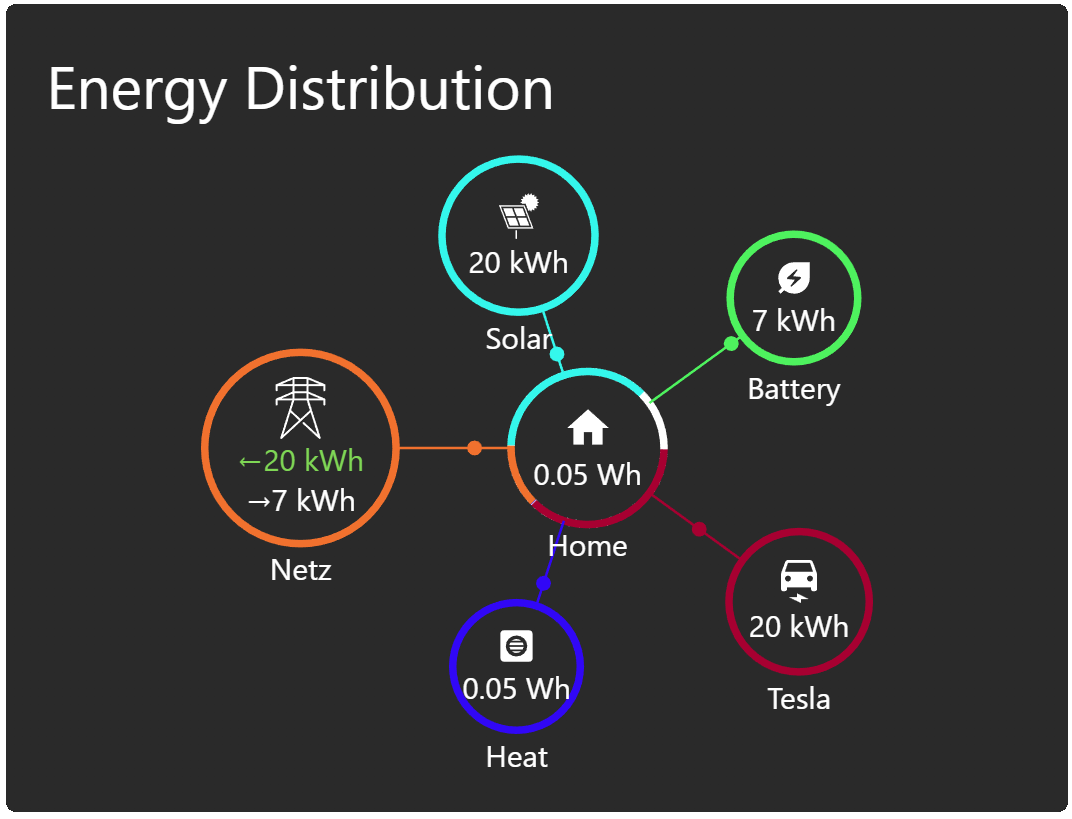

  • Energy distribution Energy distribution

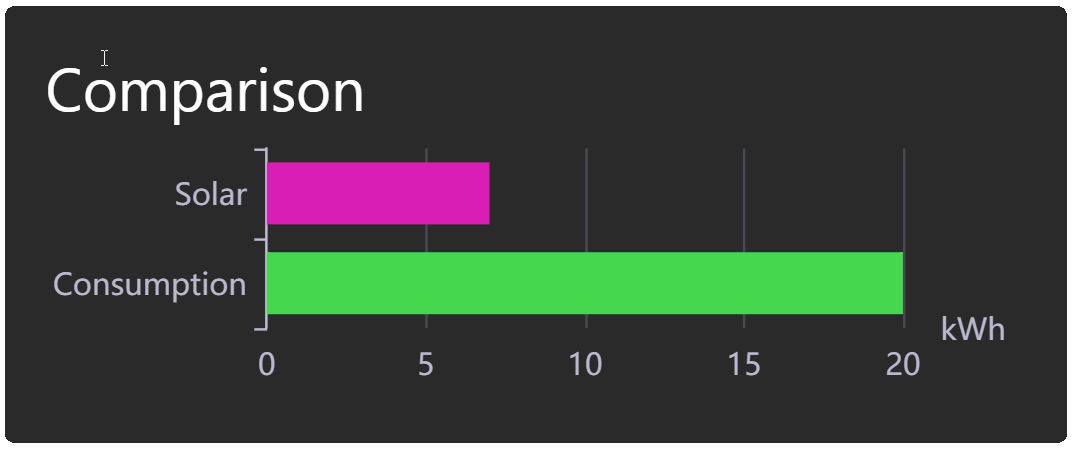

  • Energy consumption comparison Energy comparison

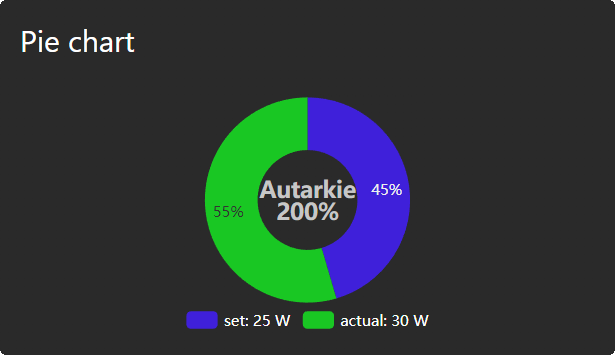

Pie chart

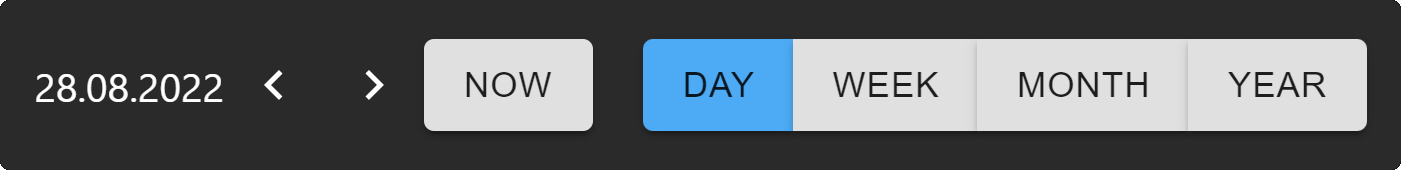

  • Time selector for energy consumption Time selector

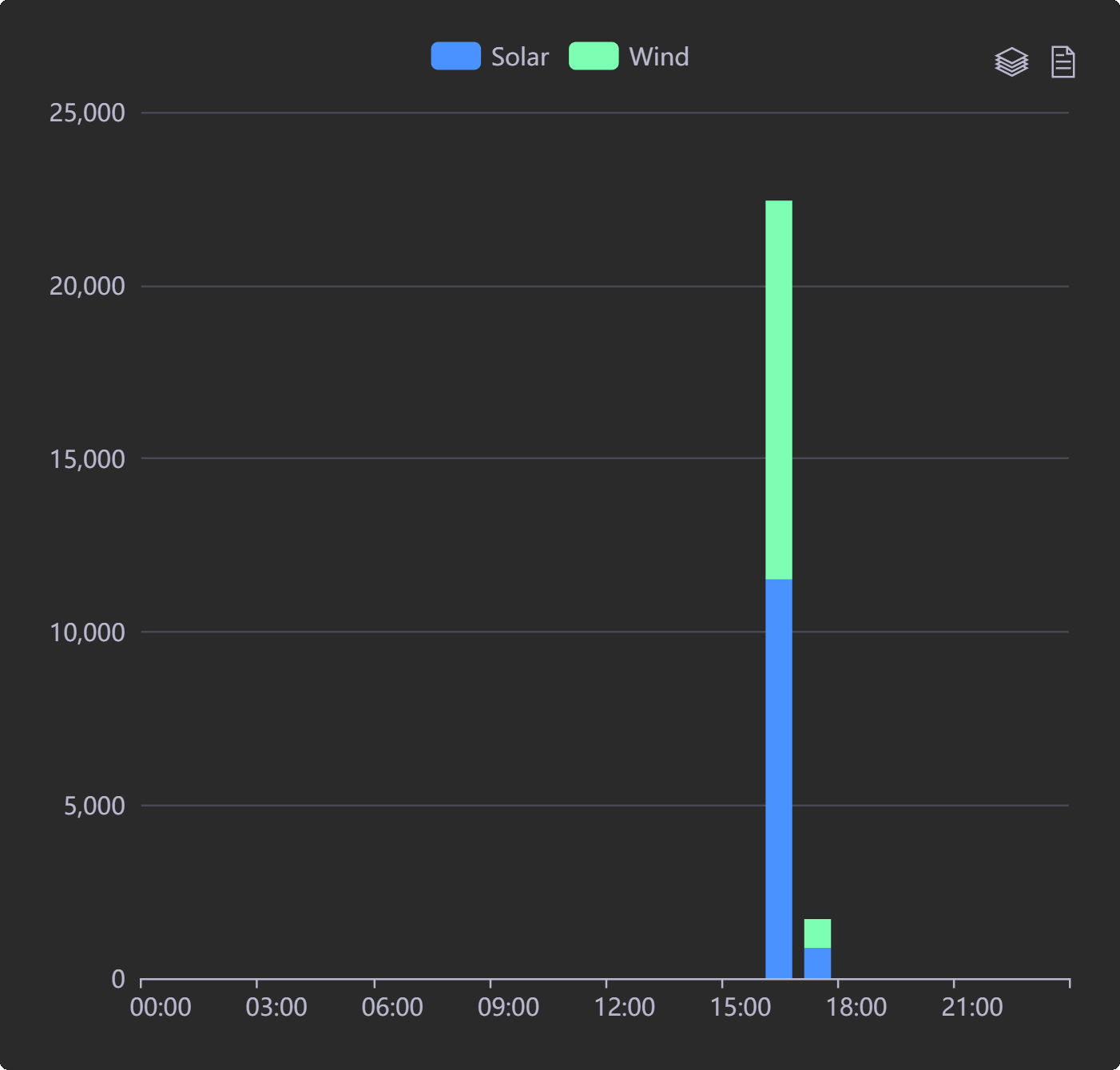

  • Energy consumption per day/week/month Energy consumption

Changelog

WORK IN PROGRESS

  • (hombach) Fixed missing translation for the "default radius size" field in the distribution widget config (#527)
  • (hombach) Addressed repository checker findings: added a concurrency block and a dedicated adapter-tests job to the CI workflow, dropped the custom test-command, and removed the redundant mocha/@types/mocha devDependencies (provided by @iobroker/testing) (#526)

2.0.1 (2026-08-13)

  • (hombach) BREAKING: the comparison widget no longer auto-converts W→Wh / kW→kWh nor divides Wh values by 1000. It now shows the real datapoint unit and raw value; use the "factor" field for scaling (#243)
  • (hombach) Comparison widget: option to disable chart animations or set their duration (#416)
  • (hombach) Distribution widget: optional second value per node shown in the circle (e.g. a battery state of charge / SoC in %) (#416, #74)
  • (hombach) Consumption widget: added a per-device factor and a y-axis unit label (#451)
  • (hombach) Consumption widget: added a "stacked" option to preselect stacked vs grouped bars (#451)
  • (hombach) Migrated the widget sources from JavaScript/JSX to TypeScript
  • (hombach) Migrated the widget build from Create React App (react-scripts/craco) to Vite with module federation
  • (hombach) Fixed broken check and lint scripts (added tsconfig files, repaired ESLint flat config for JSX sources)
  • (hombach) Fixed duplicated "inner radius" field in the consumption comparison widget config (#393)
  • (hombach) Fixed unit of the feed-back (return) value not following the power line unit in the distribution widget (#212)
  • (hombach) Fixed wrong/missing Sunday data in the consumption widget (week view now starts correctly on Monday) (#270, #290)
  • (hombach) The comparison widget x-axis now uses the configured/detected device unit instead of always showing "kWh" (#243)
  • (hombach) Addressed repository checker findings: dependabot cooldown + @types/node major-ignore, removed self-referencing licenseInformation link, ignore .commitinfo (#512)
  • (hombach) Added a check-and-lint job to the CI workflow (#512)
  • (hombach) Updated echarts to v6 (#6)
  • (hombach) Updated TypeScript dev dependency to v6 (v7 still blocked by typescript-eslint)
  • (hombach) Updated @iobroker/adapter-react-v5 to v8 and added the @emotion/react + @emotion/styled dependencies required by MUI (#17)
  • (hombach) Removed the unused legacy ESLint stack (airbnb config, deprecated eqeqeq-fix, only-warn) and the dead .eslintrc.js from src-widgets
  • (hombach) Fixed copyright year (#461)
  • (hombach) Removed deprecated common.noConfig from io-package.json (#499)
  • (hombach) Fixed build failure by removing deprecated node-sass dependency
  • (hombach) testing for node.js 24 (#383)
  • (hombach) updated GitHub actions
  • (hombach) updated dependencies
  • (hombach) fixed repo checker warnings
  • (@GermanBluefox) Refactored the code

1.0.2 (2024-08-06)

  • (bluefox) updated packages

1.0.0 (2024-07-07)

  • (bluefox) Removed withStyles package

0.3.11 (2024-02-16)

  • (bluefox) show value with green color if we feed back into power line

0.3.9 (2023-11-10)

  • (bluefox) update packages
