Shelly | ioBroker

This is the German documentation - 🇺🇸 English version

Inhaltsverzeichnis

Anforderungen

Node.js 22 (oder neuer)
js-controller 7.2.2 (oder neuer)
Admin Adapter 8.0.11 (oder neuer)

Geräte-Generationen

Für mehr Informationen, siehe unterstützte Geräte.

Gen 1: ESP8266 Geräte, CoAP/CoIoT oder MQTT
Gen 2+: ESP32 Geräte, MQTT

Allgemein

Der Adapter kann über MQTT (empfohlen) oder CoAP/CoIoT mit den Geräten kommunizieren.

Der Standard-Modus des Adapters ist MQTT (siehe Dokumentation für mehr Informationen)
CoAP/CoIoT ist ausschließlich mit Gen1 Geräten kompatibel!
Falls Gen2-Geräte integriert werden sollen, muss MQTT konfiguriert werden!

Fragen? Schaue zuerst in die FAQ!

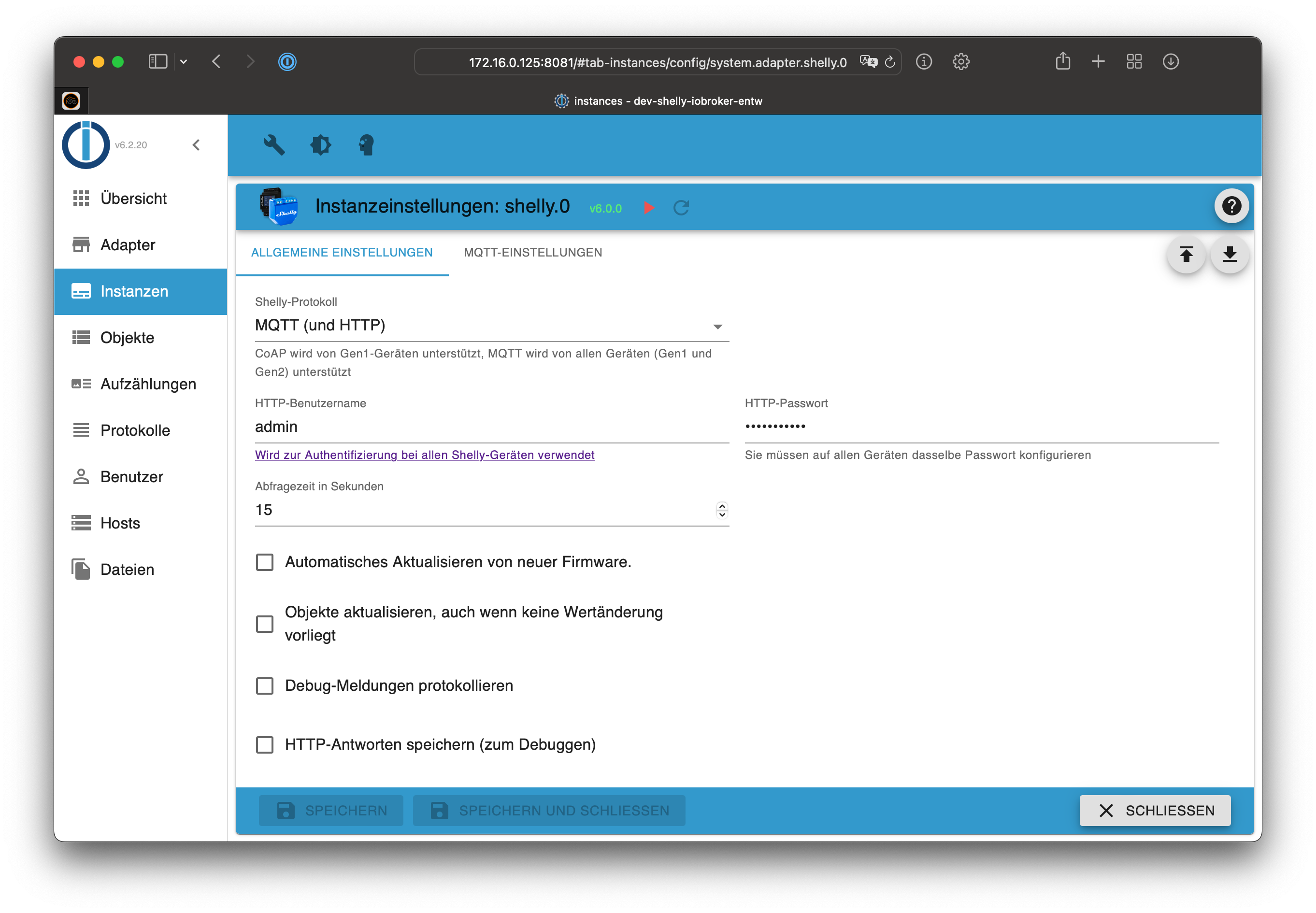

iobroker_general

Features

Der Adapter ist in den ioBroker Device Manager integriert. Weitere Informationen in der Devicemanager-Dokumentation.

Einschränkungen

Der Shelly Adapter unterstützt keine Einbindung von Shellies unter Verwendung von NAT (z.B. viele VPNS und den Shelly Range Extender)

Changelog

12.0.0-alpha.7 (2026-09-09)

(@mcm1957) BREAKING: Adapter requires js-controller >= 7.7.2 and admin >= 8.0.11 now.
(@mcm1957) Added experimental support for FrankEver Smart Sprinkler Controller (irrigation). [#1207]
(@mcm1957) Added support for Neo Smart Water Valve NAS-WV02W (neowatervalve). [#1322]
(@mcm1957) Added missing translations for the adapter configuration. [#1586]
(@GermanBluefox) Fixed that the adapter needlessly rewrote object definitions on every device update and reconnect, which caused repeated object change events and log spam in other adapters (e.g. valuetrackerovertime). [#1560]
(@GermanBluefox) Added a new "Bluetooth map" tab to the adapter configuration which shows which Bluetooth devices are received by which Shelly gateway, including the signal strength. The gateways are arranged in a circle and each device is shown at the gateway which receives it best - all other connections and the signal values can be switched on.
(@GermanBluefox) The device manager now updates the device list after renaming a device, after a firmware update and after installing the BLE gateway script - the cards showed outdated values before.
(@GermanBluefox) The device tiles now show when a device was last seen, and a device which goes offline is marked as disconnected immediately instead of only after reloading the list.
(@GermanBluefox) The BLE gateway script can now be installed and updated from the device manager - per device or for all devices which already have it installed. The installed script version is shown in the device details.
(@GermanBluefox) The list of gateways which receive a Bluetooth device (state "receivedBy") now collects all gateways instead of showing only the receivers of the last message. A gateway which stops receiving a device is removed after one hour.
(@GermanBluefox) Corrected wrong datapoint translations in all supported languages, e.g. current, voltage and apparent power.
(@patricknitsch) Device Manager now automatically shows power values on the device tile, and voltage, current, energy and frequency in the device info, for any device that reports them.
(@mcm1957) Added the missing translations for all datapoint names in all supported languages.
(@mcm1957) Added tests to validate that all datapoint names and descriptions are translated and that all i18n language files are consistent.
(@mcm1957) Added support for Shelly Duo Bulb E27 Gen 3 (shellyduobulbg3). [#1385]
(@mcm1957) Added support for Shelly Multicolor Bulb E27 Gen 3 (shellycolorblbg3). [#1386]

12.0.0-alpha.2 (2026-08-19)

(@mcm1957) The transition time can now be written for Shelly Dimmer1/Dimmer2 and for Gen2+ dimmers/lights (incl. Dimmer Gen3 and Dimmer Gen4). [#1214][#1224]
(@mcm1957) Added support for Top AC Portable EV Charger (topacportableevcharger) - EXPERIMENTAL ONLY [#1401]
(@mcm1957) Added support for Shelly Flood S Gen 4 (shellyfloodsg4). [#1380]
(@mcm1957) Added monophase mode support for Shelly 3EM G3 (shelly3em63g3). [#1540]

12.0.0-alpha.1 (2026-08-19)

(@GermanBluefox) Added option to ignore the timezone mismatch message (device timezone differs from the ioBroker host timezone).
(@GermanBluefox) Fixed MQTT errors ("Cannot read properties of undefined") if a device closes the connection while it is still being initialized (e.g. battery powered devices).
(@floze-the-genius) Corrected roles for Gen 2+ input states. [#1498]
(@klein0r) Updated ble script (v1.4) for Shelly firmware > 2.0
(@GermanBluefox) Codebase has been migrated to typescript.

11.0.0 (2026-07-03)

(@klein0r) Updated ble script (v1.3) for Shelly firmware > 2.0
(@GermanBluefox) Added firmware update available indicator for devices supporting this feature.
(@copilot) Added Shelly Dimmer 0/1-10V PM Gen4 (shelly0110dimg4).
(@copilot) Added HiluX DS8 by Shelly (hiluxds8)
(@copilot) Added Shelly EM Gen4 (shellyemg4)
(@mcm1957) Adapter requires node.js >= 22, js-controller >= 6.0.11 and admin >= 7.8.23 now.
(@GermanBluefox) Device manager has been added providing info and control of devices and provisioning.
(@mcm1957) IMPORTANT: Please read the changelog at README.md listing more information.

11.0.0 additional information

(@mcm1957) Added Shelly Presence Gen 4
(@mcm1957) Added Shelly Cury
(@GermanBluefox) Added support for Device manager: info and control of devices and provisioning
(@GermanBluefox) Added detection of new devices in the background
(@mcm1957) Some missing states added at an illuminance component
(@mcm1957) DISABLE all PLUG_UI functionality due to unrecoverable HW faults.
(@mcm1957) Dependencies have been updated
