Schlueter Ditra Heat Thermostat

🌍 Overview

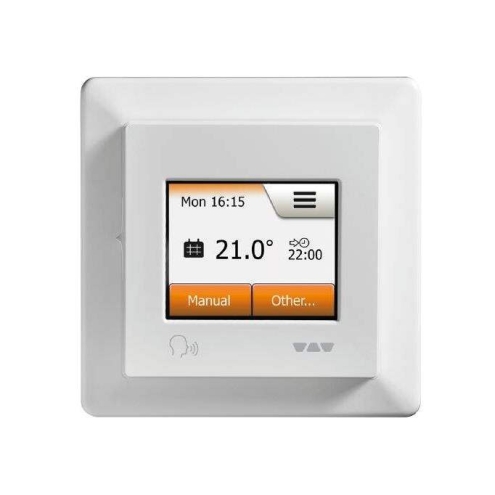

This adapter integrates Schlüter / OJ Microline OWD5 thermostats into ioBroker via the official cloud APIs.

It is based on the HA Integration from @robbinjanssen. For more informations see the documentation.

Cloud-only — no local gateway, Modbus, or LAN API required.

🚀 How to Start

Install adapter in ioBroker
Open instance configuration
Enter:

Setting	Description
Username	Your Schlüter/OJ cloud login
Password	Cloud password
API Key	Below works in most cases
Customer ID	Found in thermostat info
Client SW Version	Numeric value from thermostat
Poll Interval	Default: 60 seconds

Save & start adapter

For API-Key you can try with: f219aab4-9ac0-4343-8422-b72203e2fac9. You can find this Key in Forum: https://community.home-assistant.io/t/mwd5-wifi-thermostat-oj-electronics-microtemp/445601, so it looks like a global Key.

Documentation

🇺🇸 Documentation

🇩🇪 Dokumentation

Compact Architecture Overview

Architecture Badges

Compact Program Structure

flowchart LR
  UI[User / UI] --> IO[ioBroker States]
  IO --> ADP[Adapter]

  ADP -->|read| OWD5[OWD5 Cloud]
  ADP -->|write| OCD5[OCD5 Cloud]
  OCD5 --> TH[Thermostat]

  ADP --> OBJ[Object Tree]
  OBJ --> RO[Read States]
  OBJ --> AP[Apply Controls]

Internal Flow (Mini)

flowchart TB
  READY[onReady] --> LOGIN[Cloud Login]
  LOGIN --> POLL[pollOnce]
  POLL --> UPSERT[Update Objects + States]
  UPSERT --> BACKOFF{All offline?}
  BACKOFF -- yes --> INC[Increase interval up to 1h then 12:00/00:00]
  BACKOFF -- no --> RESET[Reset to base interval]
  INC --> POLL
  RESET --> POLL

  APPLYBTN[Apply Button] --> ROUTER[applyRouter]
  ROUTER --> API[updateThermostat]

📌 Notes

Developed and tested with a single thermostat
Multi-device environments supported, but feedback welcome

Changelog

WORK IN PROGRESS

(patricknitsch) Add Node.js 26 in test-and-release.yml

0.7.4 (2026-06-05)

(copilot) Fixes for Repo Checker

0.7.3 (2026-05-25)

(copilot) Fixes for Repo Checker

0.7.2 (2026-05-23)

(copilot) Add Icons for Notifications

0.7.1 (2026-05-21)

(copilot) Modify notification manager to work with instances
(copilot) Update Dependencies

0.7.0 (2026-05-14)

(claude) Add Notification Manager

Older changelog entries can be found in CHANGELOG_OLD.md.
