FRITZ!Box

ioBroker fritzbox Adapter

This adapter uses Sentry libraries to automatically report exceptions and code errors to the developers. For more details and for information how to disable the error reporting see Sentry-Plugin Documentation! Sentry reporting is used starting with js-controller 3.0.

AVM Fritz!Box®

The Fritz!Box (own spelling of the manufacturer AVM) is one of the most widely used routers on the market.

There are now models for all common types of internet connection: DSL, cable, mobile and fiber access.

Adapter Fritzbox

The adapter establishes a connection between the Fritz!Box (short: FB) and ioBroker and provides data and lists of calls.

Prerequisites before installation

The data exchange takes place via the call monitor integrated in the FB. To activate it, dial the following number from a connected telephone:

• #96*5* - switch call monitor on
• #96*4* - switch call monitor off

Install

Choose Adapter "fritzbox" in ioBroker Admin

Configuration

Settings

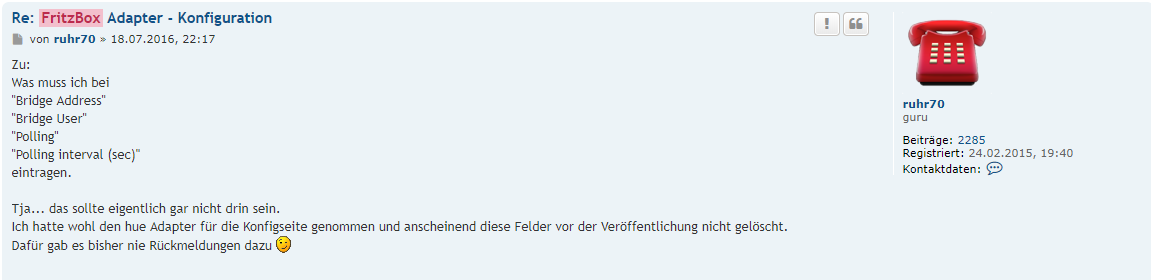

Here you only have to activate which data should be transmitted and in which form. According to the developers some data fields are unnecessary (see the graphic and the thread in the forum); this adapter does not receive any further updates, as it can be replaced by the more powerful "TR-064" adapter.

Further information in the forum in this thread.

Autosetup

see Settings

Instance

Under Instances of the ioBroker you find the installed instance of the adapter. On the left it is visualized in a traffic light system whether the adapter is activated and connected.

If you place the mouse pointer on a symbol, you get detailed information.

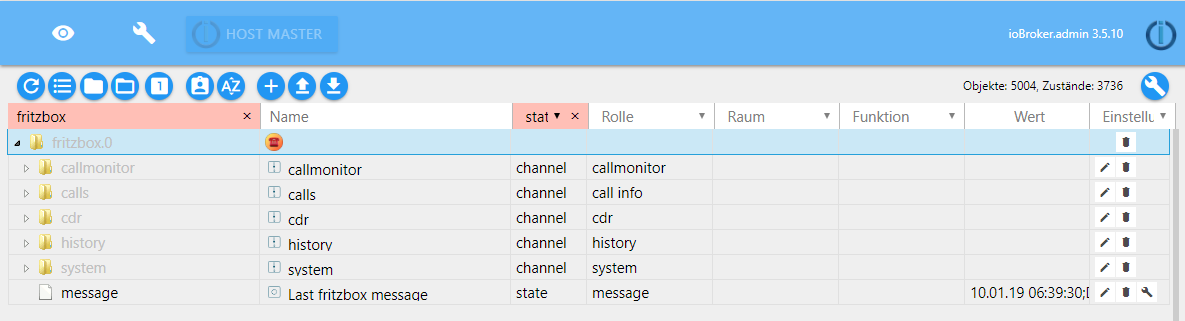

Objects of the adapter

In the objects area all values, lists and information transmitted by the FB to the adapter are displayed in a tree structure (see settings).

Directly in the instance folder fritzbox.x you find the data point message with date, time and type of the last action.

The respective channels and the data points created therein are briefly described below.

Channel callmonitor

The data points show the calls in real time.

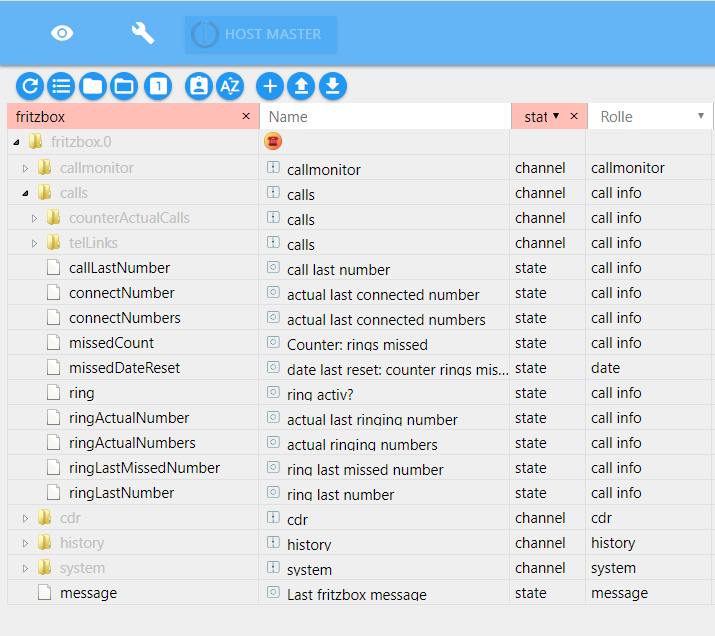

Channel calls

Within this channel 2 more channels and some data points are created:

counterActualCalls

Here the values of the various counters of current calls are listed in real time:

telLinks

The data points listed below are formatted as a link, so that the corresponding number can be dialed via the link (e.g. via a widget in VIS):

Channel cdr

These data points provide information in formatted form (see settings).

Channel history

These data points provide tables in formatted form. Which information is transmitted can be defined in the settings.

Channel system

FAQ

Q: There is the Fritzbox and the TR-064 adapter, which also accesses the FB call monitor. What are the differences, do both adapters have to be installed?

A: The Fritzbox adapter comes from the initial phase and made only those of the possible information of the router available which concerned the calls.

TR-064 can be considered a further development, as this adapter offers much more extensive information, e.g. about the devices registered at the FB.

In principle it is sufficient if one of the two adapters is installed. However, since many long-standing users use the FB adapter and have built their visualization on it, it remains available but is no longer being developed.

Newcomers are recommended to install the TR-064 adapter.

Data Points Documentation

Under fritzbox.x. the adapter creates the following channels and data points:

• message -(Message from the FRITZ!Box)

calls Channel

• calls.ring - true/false, is there an incoming call?
• calls.missedCount - Integer, read & write, number of missed calls
• calls.missedDateReset - Date when calls.missedCount was last reset to 0
• calls.ringActualNumber - currently ringing call - the last one if there are multiple)
• calls.ringActualNumbers - all currently ringing calls
• calls.ringLastNumber - last caller
• calls.ringLastMissedNumber - last missed caller
• calls.callLastNumber - redial, last dialed phone number
• calls.connectNumber - last currently connected call
• calls.connectNumbers - all currently connected calls

calls.counterActualCalls Channel - Realtime

• calls.counterActualCalls.ringCount - number of incoming ringing calls (RING)
• calls.counterActualCalls.callCount - number of outgoing call attempts (CALL)
• calls.counterActualCalls.connectCount - number of active connected calls (CONNECT)
• calls.counterActualCalls.allActiveCount - number of all active calls (CALL, RING & CONNECT)

calls.telLinks Channel - dialable phone numbers tel:+...

• calls.telLinks.ringLastNumberTel - last caller as a dialable link
• calls.telLinks.ringLastMissedNumberTel - last missed caller as a dialable link
• calls.telLinks.callLastNumberTel - redial, last dialed phone number, dialable

history. Channel

• history.allTableTxt - ...
• history.allTableHTML - call list as HTML table
• history.allTableJSON - call list as JSON
• history.missedTableHTML - missed calls list as HTML
• history.missedTableJSON - missed calls list as JSON

history.cdr Channel

• history.cdr.json - CDR as JSON
• history.cdr.html - CDR as HTML
• history.cdr.txt - CDR as TXT
• history.cdr.missedJSON - last missed call as JSON
• history.cdr.missedHTML - last missed call as HTML

callmonitor. Channel

• callmonitor.all - HTML list: all active calls in all states
• callmonitor.ring - HTML list: all active incoming calls
• callmonitor.call - HTML list: all outgoing calls
• callmonitor.connect - HTML list: all connected calls

system. Channel

• system.deltaTime - time delta between system and FRITZ!Box in seconds
• system.deltaTimeOK - true/false, time delta between system and FRITZ!Box within tolerance

wlan. Channel

• wlan.enabled - true/false, read & write, WLAN state, only available when password is configured

phonebook. Channel

• phonebook.tableJSON - phone book of all external numbers as JSON

tam. Channel

• tam.messagesJSON - all messages of the answering machine as JSON

Example Widgets

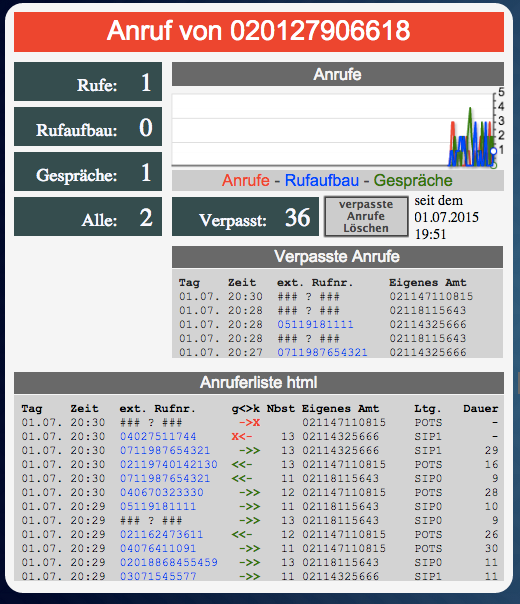

FRITZ!Box Large Widget

Includes it among others:

• a red bar showing the caller's phone number during an active incoming call
• a graphical timeline showing the number of calls by type: ringing, call setup, and connected
• counter for missed calls with a reset button
• list of missed calls
• list of all calls with color coding (connected/not connected) and direction
• counters for: currently ringing calls, outgoing call setups, connected calls, total calls/call attempts
• an info field that turns yellow when the FRITZ!Box time deviates too much from the ioBroker system time

ioBroker FRITZ!Box large widget as VIS import file

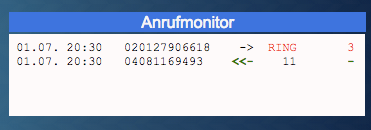

FRITZ!Box Live Call Monitor Widget

Shows all active calls, incoming calls (ringing), and outgoing call setups. The duration is displayed for active calls and incoming calls (updated every second).

ioBroker live call monitor widget for import into VIS

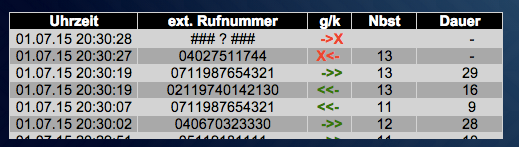

FRITZ!Box Call List Widget using the "basic - HTML Widget"

The column contents and their headers can be freely chosen in the widget. This also allows headings in other languages.

ioBroker call list widget with the basic - HTML widget for import into VIS

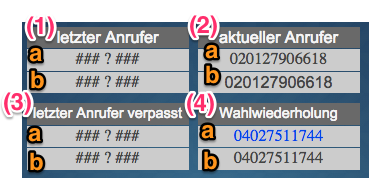

FRITZ!Box Widgets: Information About Current and Past Callers

The info widgets are examples of individual data points generated by the FRITZ!Box adapter.

There is one data point with the phone number as output by the FRITZ!Box (a), and one data point with the phone number converted to a dialable link (b) (e.g. the number 020147114711 is displayed and linked with tel:+4920147114711). The tel-links are useful, for example, on VIS interfaces on smartphones, to return a missed call with a single tap.

Example widgets:

• (1) last caller
• (2) current caller (shown for the duration of ringing)
• (3) last caller who was missed (not answered)
• (4) redial: last dialed a phone number

ioBroker widget information about recent calls

JSON Data Format for JSON CDR and JSON Call List

{
    "date":"25.07.15 16:40:21",
    "dateEpoch":1437835221000,
    "dateEpochNow":1437835221000,
    "deltaTime":0,
    "deltaTimeOK":true,
    "type":"DISCONNECT",
    "id":"1",
    "extensionLine":"11",
    "ownNumber":"021147114711",
    "externalNumber":"051112345678",
    "lineType":"POTS",
    "durationSecs":"55",
    "durationForm":"     55",
    "durationSecs2":"55",
    "durationRingSecs":"",
    "connect":true,
    "direction":"out",
    "dateStartEpoch":1437835144000,
    "dateConnEpoch":1437835167000,
    "dateEndEpoch":1437835221000,
    "dateStart":"25.07.15 16:39:04",
    "dateConn":"25.07.15 16:39:27",
    "dateEnd":"25.07.15 16:40:21",
    "callSymbol":"<<-&nbsp;",
    "callSymbolColor":"<span style=\" color:green\"><b><<-&nbsp;</b></span>",
    "unknownNumber":false,
    "ownNumberForm":"021147114711&nbsp;&nbsp;&nbsp;",
    "externalNumberForm":"051112345678&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;",
    "ownNumberE164":"+4921147114711",
    "externalE164":"+4951112345678",
    "externalTelLink":"<a style=\" text-decoration: none;\" href=\"tel:+4951112345678\">051112345678&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;</a>",
    "externalTelLinkCenter":"<a style=\" text-decoration: none;\" href=\"tel:+4951112345678\">051112345678</a>"
}

Changelog

1.0.0 (2026-09-09)

• (copilot) Adapter requires node.js >= 22 now
• (copilot) ENHANCED: Translated README documentation from German to English
• (GermanBluefox) Merged the ioBroker.net manual (docs/de, docs/en) into a single README.md
• (GermanBluefox) The adapter was refactored to TypeScript, the sources are in src/ and are compiled to build/
• (GermanBluefox) The admin configuration was migrated from the HTML page to JsonConfig, the translations moved to admin/i18n/<lang>.json
• (GermanBluefox) request was replaced by axios
• (GermanBluefox) enableWlan, enablePhonebook and enableTAM have a default in io-package.json now, unused native entries were removed
• (GermanBluefox) The adapter cannot be installed directly from GitHub anymore, because the sources have to be compiled (common.nogit)
• (GermanBluefox) FIXED: after a lost connection, the adapter tried to reconnect only once
• (GermanBluefox) FIXED: the tel: links were not initialized, they were written to telLinks.* instead of calls.telLinks.*
• (GermanBluefox) FIXED: the cleanup of the answering machine audio files looked into the working directory instead of the instance directory
• (GermanBluefox) The adapter supports the compact mode now

0.7.0 (2026-03-07)

• (iobroker-bot) Adapter requires node.js >= 20 now.
• (copilot) Adapter requires admin >= 7.7.22 now
• (copilot) Adapter requires js-controller >= 6.0.11 now
• (mcm1957) Dependencies have been updated

0.6.0 (2024-04-11)

• (mcm1957) Adapter requires node.js >=18 and js-controller >= 5 now
• (mcm1957) Dependencies have been updated

0.5.0 (2022-04-02)

• (Apollon77) Write history.missedTableJSON value
• (Apollon77) Store tam files in an instance-specific location
• (Apollon77) Fix crash cases reported by Sentry

0.4.0 (2022-03-25)

• IMPORTANT: You need to re-enter the password once after installing this version!
• (Khaos66/Apollon77) General updates and fixes
• (Khaos66) TAM (Telephone Answering Maschine) support added
• (Apollon77) Add Sentry for crash reporting
