Event-List adapter for ioBroker
Allows defining the states that must be logged in the event list.
The list can be shown in admin, web, vis, saved as PDF, material (not yet implemented).
Additionally, you can send events via Telegram or WhatsApp.
Settings of a state
A state is normally added to the list in the instance settings, where the whole set of settings is available: texts, colours, icons, messengers and the standing messages.
The most important of them are also in the custom settings of the object itself, the tab behind the
gear symbol in the objects list: the event text, "only changes", and for a boolean state the text
and the colour of TRUE and FALSE. This is the same set the old dialog of the adapter offered, and it
writes into the same place, common.custom.<eventlist.X>, so both ways can be mixed.
Alarm mode
The events could be generated only in alarm mode.
The alarm mode could be controlled by variable eventlist.X.alarm.
Additionally, the messages to messengers could be sent only if the alarm mode is ON.
Use case:
- E.g., door sensor can send the messages only if nobody is home. Else the events about door opening will be only collected in the event list.
Messages
Beside the event list, which logs what happened, the adapter keeps a list of what is standing: a message comes when a condition becomes true, it goes when the condition becomes false, and it leaves the list only once it has been acknowledged. This is the usual behaviour of a control room and something the event list alone cannot do.
Do not confuse it with the alarm mode above. The alarm mode is an arming switch, a message is a fault.
Levels
fatal, error, warning and info. The two severe ones have to be acknowledged by default, the
other two do not; every message can override that.
The four states of a message
| code | active | acknowledged | in the list |
|---|---|---|---|
| K | yes | no | yes |
| KQ | yes | yes | yes |
| KG | no | no | yes |
| KGQ | no | yes | no |
A message that goes and comes again before it was acknowledged does not produce a second entry, it counts its repetitions instead. So a flapping contact cannot flood the list.
Messages from a state
The message settings sit next to the other settings of a state, in
common.custom.<eventlist.X>.message:
{
"level": "error",
"text": "%n too hot: %s%u",
"condition": { "operator": ">", "limit": 90 },
"requiresAck": true,
"priority": 50,
"hysteresis": 5,
"delay": 3000,
"delayGone": 60000,
"group": "boiler"
}
condition is either a comparison with operator and limit for numbers, or a value that raises
the message for booleans and texts. In the text the patterns %s, %u, %n and %l may be used.
For states with an enumeration, every single value can carry a level instead. Then every value is
its own message and only the one of the current value stands. Text, group and the delays are shared
by all of them.
Quiet in the list
Four settings keep the list readable, all of them optional:
| setting | |
|---|---|
delay | the condition has to hold that many milliseconds before the message comes |
delayGone | the same for going. A fault that stops for a moment is not repaired. |
hysteresis | only for numbers: a message that stands goes only once the value has come back over the limit by that much. Against a value that trembles at its limit. |
| flapping protection | set for the whole instance, by default more than ten transitions in five minutes |
A message that flaps stays in the list, is marked with flapping and writes no further entries into
the event list until it has calmed down. Only the beginning and the end of the restlessness are
written, so a loose contact costs two lines and not two hundred.
Groups
group is a free name. Messages of the same group are acknowledged together, and the one that came
first is marked with first in the list — usually the fault, while the rest is its consequence.
// acknowledge the whole group
setState('eventlist.0.messages.ack', 'boiler');
Messages from a script
Not every fault hangs on a single signal. A script can raise and clear a message itself, the freely
chosen id holds it together over its life cycle:
sendTo('eventlist.0', 'message', {
id: 'heating.flow',
level: 'error',
text: 'Flow too cold although the pump runs',
});
// the same message goes again
sendTo('eventlist.0', 'message', { id: 'heating.flow', state: 'gone' });
A message from a foreign system may bring a severity from 1 to 1000 instead of a level, as OPC UA
does. It is mapped onto a level: above 800 fatal, above 500 error, above 200 warning, the rest
info.
Acknowledging
// one message, a group, or "*" for everything that can be acknowledged
setState('eventlist.0.messages.ack', 'heating.flow');
// with the name of the user, and with the number of acknowledged messages as an answer
sendTo('eventlist.0', 'ack', { id: '*', user: 'ben' }, result => console.log(result.acknowledged));
// read the standing messages
sendTo('eventlist.0', 'messages', null, result => console.log(JSON.stringify(result)));
During a maintenance
While somebody works on the heating, everything reports. A message or a whole group can be taken out of the list for a while:
// half an hour of quiet for the group "boiler"
setState('eventlist.0.messages.suppress', 'boiler:30');
// the same with the message API, and "*" suppresses everything
sendTo('eventlist.0', 'suppress', { target: 'boiler', minutes: 30 });
// let it back in
setState('eventlist.0.messages.suppress', 'boiler:0');
Without a duration the one from the instance settings is used, an hour by default, and a suppression lasts a month at most. That end matters: a message that is suppressed for ever is a fault nobody knows about any more. A suppressed message keeps working internally, it is only out of the list, out of the counters and out of the event list; the beginning and the end of the suppression are written into the event list, so the gap in the history has a reason.
The table in the admin
The instance settings have a tab Messages with everything that stands: level, the combined state
K / KQ / KG, how long it has been standing, the text, the value, how often it came, the group
and the state ID. The first message of a group and a flapping one are marked, what is suppressed at
the moment is named above the table, and single messages or all of them at once can be acknowledged
from there. The order is the one of a control room: level, then priority, then time.
The horn
messages.horn is true while an unacknowledged message of a configurable level or a more severe one
stands, by default from error on. It is meant for a siren, a lamp or a tile colour and goes quiet
with the acknowledgement, not with the repair. Messages that nobody has to acknowledge never sound
it.
States
| state | |
|---|---|
messages.list | the standing messages, sorted and ready for display |
messages.raw | the same messages with their internal state, survives a restart |
messages.count | how many messages stand |
messages.countFatal … countInfo | the same per level |
messages.unacknowledged | how many of them nobody has acknowledged |
messages.highest | the most severe standing level, empty if nothing stands |
messages.horn | an unacknowledged message from the configured level on stands |
messages.ack | write here to acknowledge a message, a group or * |
messages.suppress | write here to suppress, as target:minutes |
messages.suppressed | what is suppressed at the moment, and until when |
Every transition also writes a normal entry into the event list, with the level, the message id and what happened. So the history stays complete and all existing views, the PDF and the messengers keep working.
After a restart the conditions are evaluated again. A message whose condition is no longer true goes at that moment and stays in the list unacknowledged, because otherwise nobody would ever learn that the fault happened. Messages from a script cannot be re-evaluated, only the script knows their condition, so they stay as they were. Running delays do not survive a restart, they start again; suppressions do, they keep running until their end.
Possible presentations
In the Admin as tab

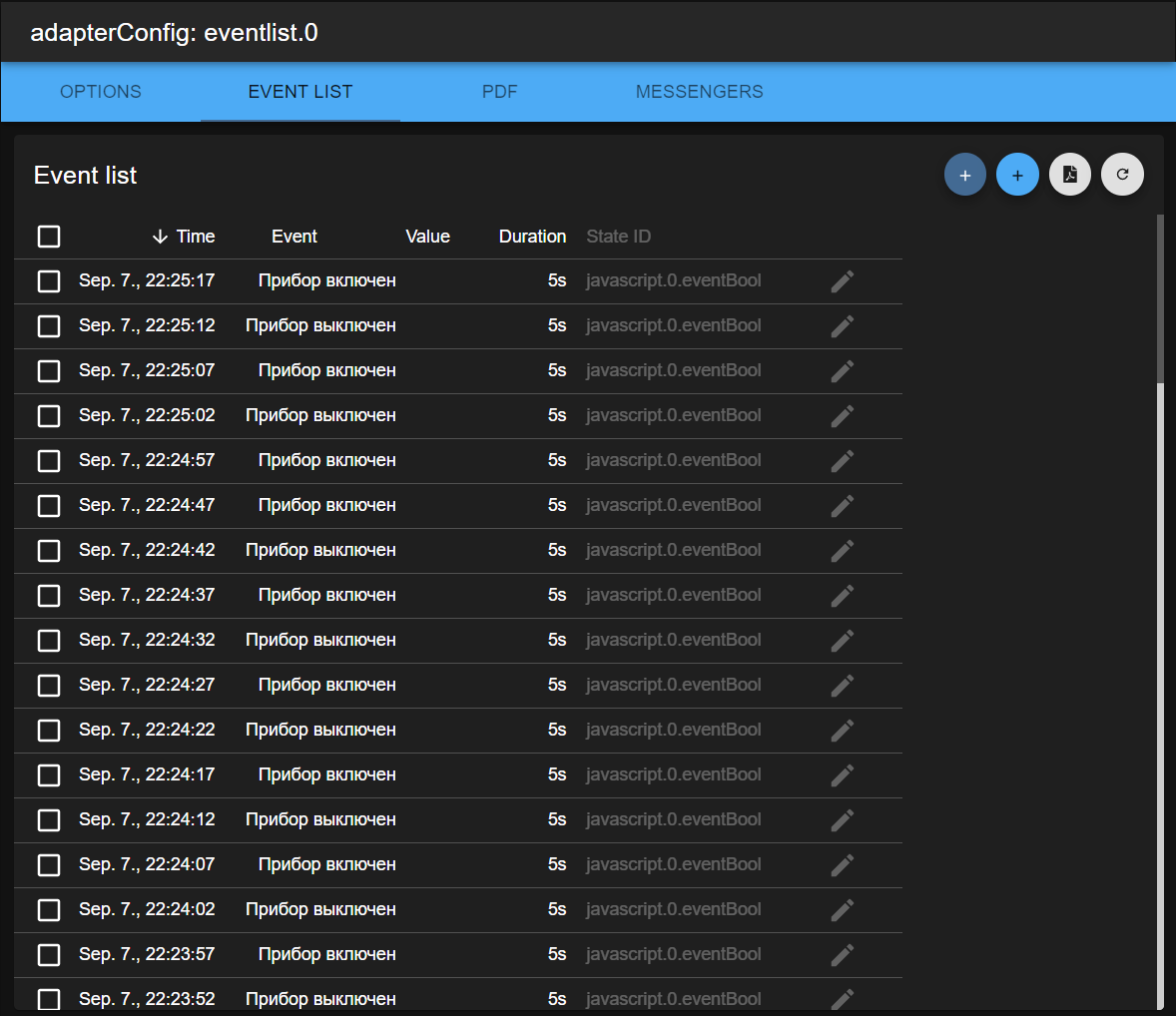

You can enable the event list as a tab in the admin.
Web
Event list could be shown under http://<IP>:8082/eventlist/index.html. (for instances > 0: http://<IP>:8082/eventlist/index.html?X, where X is the instance number)
Vis Widget
Event list can be displayed as a vis widget.
Device manager
The device manager shows a tile with the newest event. A click on it opens the whole list in a dialog. The tile can be limited to the events of one state, so every device can have its own tile.
PDF generation

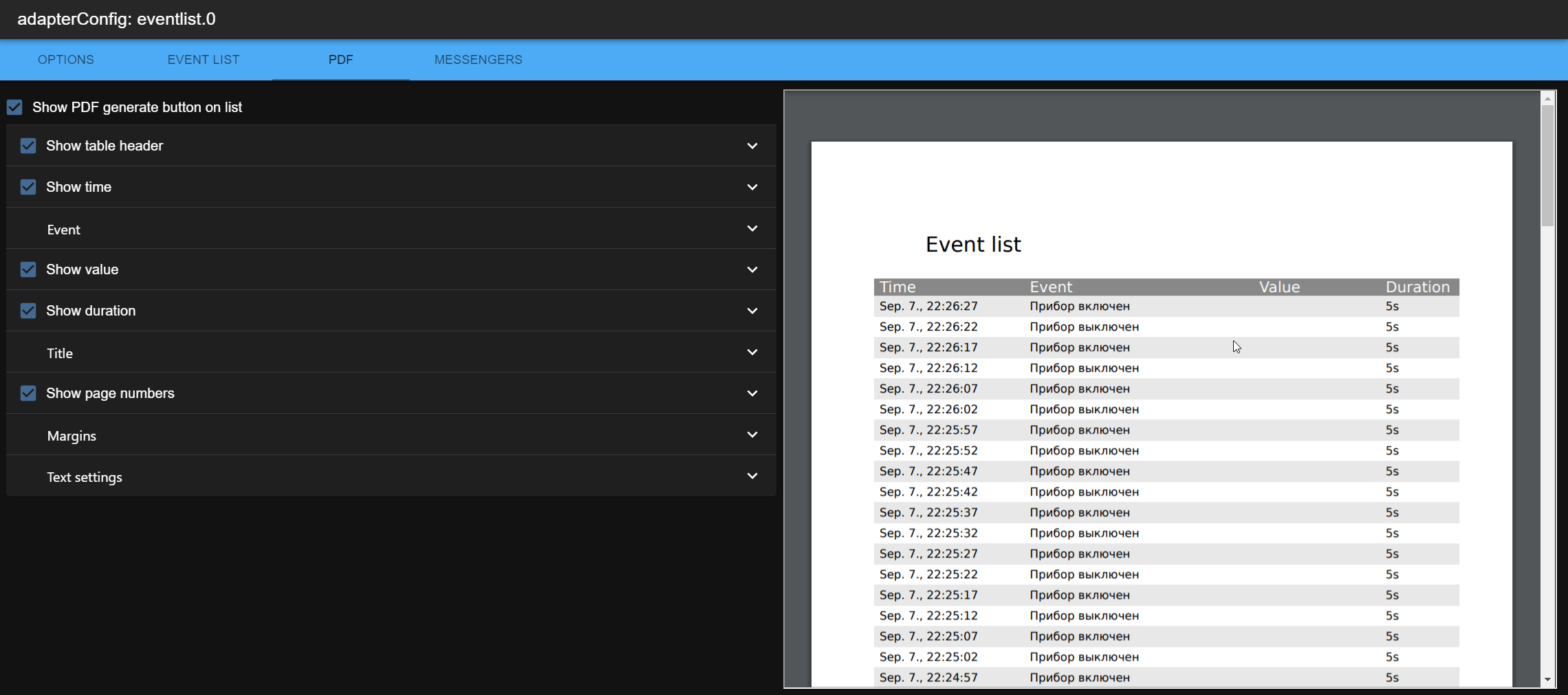

There is a possibility to generate a PDF document with all events.
Document title can consist the generation date if you place the pattern into it: Event list on {{YYYY MM DD}}.
The exact description of time format could be found here: https://momentjs.com/docs/#/displaying/format/
The generation of PDF can be triggered by writing a true into eventlist.0.triggerPDF.
The PDF file could be accessed via:
- web:
http://<IP>:8082/eventlist/eventlist/report.pdf(for instances > 0:http://<IP>:8082/eventlist/eventlist/report-X.pdf, where X is the instance number) - admin:
http://<IP>:8081/files/eventlist/report.pdf(for instances > 0:http://<IP>:8081/files/eventlist/report-X.pdf, where X is the instance number)
The icons could not be shown in PDF.
Message box
Users can add custom events to the list via javascript:
// add custom event to event list
sendTo('eventlist.0', 'insert', {
event: 'My custom text',
id: 'ID.that.linked.with.this.event', // optional
ts: new Date('2020-09-25T16:11:00'), // optional. Default is Date.now()
val: 5, // optional
duration: 5, // in ms
});
// Or simple
sendTo('eventlist.0', 'insert', 'My custom text');
// or
setState('eventlist.0.insert', 'My custom text');
// or
setState('eventlist.0.insert', JSON.stringify({event: 'My custom text %s', val: 5}));
User can request a formatted JSON list for a specific ID. Of course the ID must be enabled in the eventlist before.
// add custom event to event list
sendTo('eventlist.0', 'list', {
ids: ['my.0.state.id1', 'my.0.state.id2'],
count: 10, // optional limit of maximal lines in table,
allowRelative: false, // optional if relative times, e.g. "one minute ago", may be used (Default: true)
}, result => {
console.log(JSON.stringify(result)); // array with events
// result = [{id: 'my.0.state.id1',
//
});
// or
sendTo('eventlist.0', 'list', 'my.0.state.id1', result => {
console.log(JSON.stringify(result)); // array with events
});
Users can delete some or all events from the event list.
// delete all events
sendTo('eventlist.0', 'delete', '*', result => {
console.log(`Deleted ${result.deleted} events`);
});
// delete all events for specific state ID
sendTo('eventlist.0', 'delete', 'hm-rpc.0.AEOI99389408.1.STATE', result => {
console.log(`Deleted ${result.deleted} events`);
});
// delete one event by timestamp
sendTo('eventlist.0', 'delete', '2020-10-20T21:00:12.000Z', result => {
console.log(`Deleted ${result.deleted} events`);
});
Patterns
In the event texts and in the state texts, the following patterns could be used:
- %s - value (
State changed to %s=>State changed to 5), - %u - unit (
State changed to %s%u=>State changed to 5%), - %n - name (
%n changed state to %s=>Device A changed state to 5), - %t - time (
State changed state on %t=>State changed state on Sep Fr, 16:32:00), - %r - relative time (
State changed state %r=>State changed state 5 seconds ago), - %d - duration (
State was in previous state for %d=>State was in previous state for 5s), - %g - value difference, so the new value minus the previous one. Only for states of type
number(State was changed on %g%=>State was changed on 1%), - %o - previous value (
State changed value from %o to %s=>State changed value from 4 to 5)
Usage of multiple instances in the web
E.g., you can show the specific list for instance 2, like http://IP:8082/eventlist/index.html?2.
The generated report will be stored for instance 0 in eventlist/report.pdf, but for instance 1 in eventlist/report-1.pdf.
Todo
- Change initial texts in PDF in according language
- Many predefined icons (minimum 100)
- Send messages to syslog (maybe splunk) https://www.npmjs.com/package/splunk-logging
