Epson Stylus PX830

EPSON Stylus PX830 Ink Status

Current Release
0.4.0
Developer
Pix, iobroker-community-adapters
License
MIT

Description

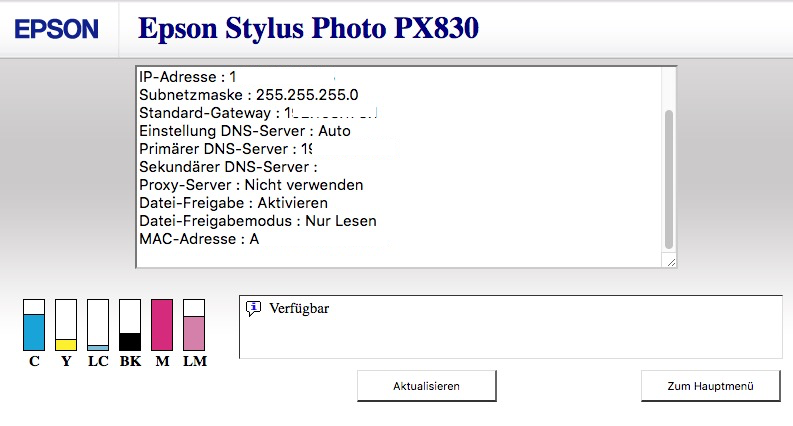

This adapter reads the ink levels of an Epson Stylus Photo PX830 from the printers website

alt text

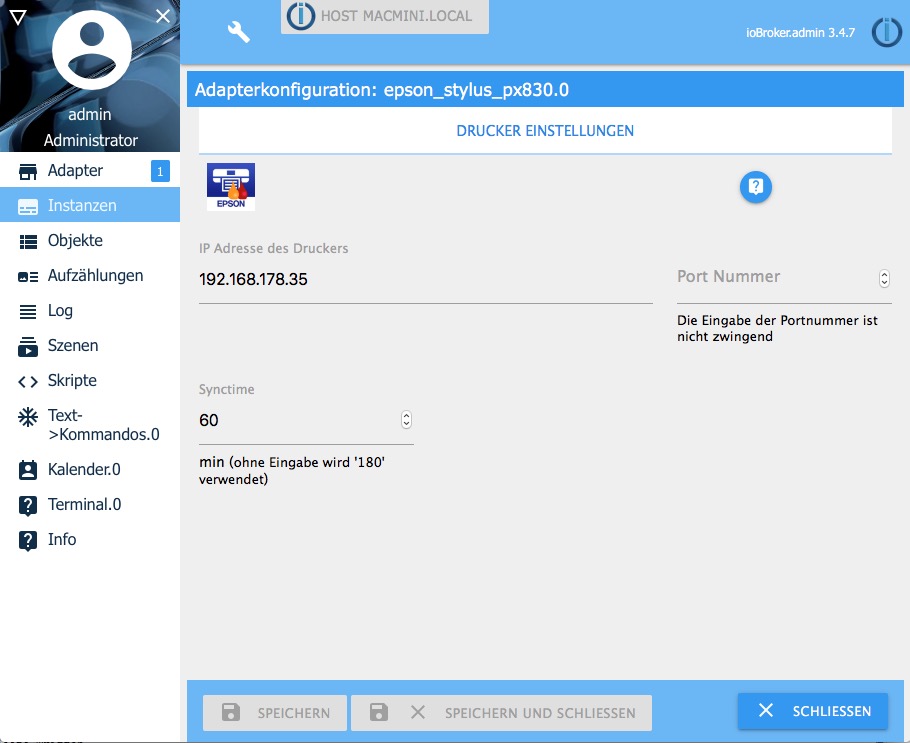

Configuration

IP / Port

IP adress of Epson Printer within local network. The adapter will stop if no IP is entered. The port number is optional and only will be considered if an ip adress was set before.

Synchronisation

In synctime you can choose the frequency of connections to the printer in minutes. Default is 180min, input is optional.

Datapoints

alt text

Schedule

The adapter starts as often as set up in the settings window.

Datapoints

epson_stylus_px830.0.UNREACH (boolean)

epson_stylus_px830.0.connect (string) type of connection (WLAN,Eth)

epson_stylus_px830.0.name (string)

epson_stylus_px830.0.model (string)

epson_stylus_px830.0.mac (string)

epson_stylus_px830.0.IP(string)

epson_stylus_px830.0.inks (channel)

For every color:

epson_stylus_px830.0.inks.color.level (number 0-100%)

epson_stylus_px830.0.inks.color.cartridge (string) -> Epson product name for its ink

VIS

Widget

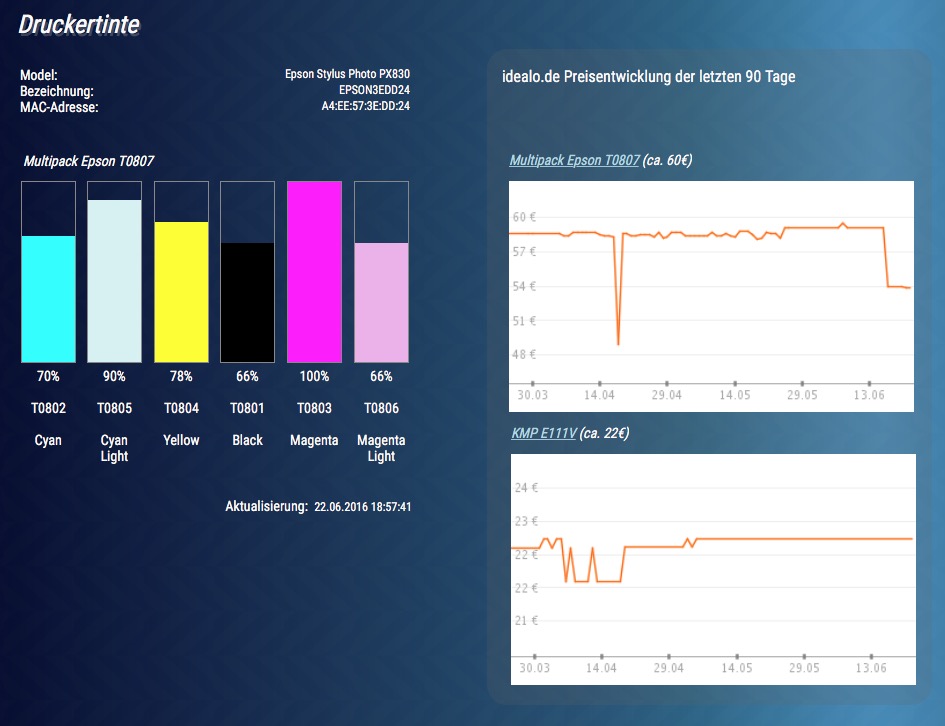

Example set of widgets for VIS alt text

[{"tpl":"tplImage","data":{"visibility-cond":"==","visibility-val":1,"refreshInterval":"0","refreshOnWakeUp":"false","refreshOnViewChange":"false","name":"idealo.de Preisechart","src":"http://cdn.idealo.com/folder/Product/1057/8/1057817/s1_pricetrendFaceliftLarge.png","gestures-offsetX":0,"gestures-offsetY":0,"signals-cond-0":"==","signals-val-0":true,"signals-icon-0":"/vis/signals/lowbattery.png","signals-icon-size-0":0,"signals-blink-0":false,"signals-horz-0":0,"signals-vert-0":0,"signals-hide-edit-0":false,"signals-cond-1":"==","signals-val-1":true,"signals-icon-1":"/vis/signals/lowbattery.png","signals-icon-size-1":0,"signals-blink-1":false,"signals-horz-1":0,"signals-vert-1":0,"signals-hide-edit-1":false,"signals-cond-2":"==","signals-val-2":true,"signals-icon-2":"/vis/signals/lowbattery.png","signals-icon-size-2":0,"signals-blink-2":false,"signals-horz-2":0,"signals-vert-2":0,"signals-hide-edit-2":false},"style":{"left":"575px","top":"193px","z-index":"20","width":"405px","height":"233px"},"widgetSet":"basic"},{"tpl":"tplFrame","data":{"visibility-cond":"==","visibility-val":1,"title":"idealo.de Preisentwicklung der letzten 90 Tage","title_color":"rgba(250,250,250,1)","title_top":"18","title_left":"15","header_height":"0","header_color":"red","title_font":"RobotoCondensed-Regular, Futura","title_back":"","name":"Hintergrund idealo","gestures-offsetX":0,"gestures-offsetY":0,"signals-cond-0":"==","signals-val-0":true,"signals-icon-0":"/vis/signals/lowbattery.png","signals-icon-size-0":0,"signals-blink-0":false,"signals-horz-0":0,"signals-vert-0":0,"signals-hide-edit-0":false,"signals-cond-1":"==","signals-val-1":true,"signals-icon-1":"/vis/signals/lowbattery.png","signals-icon-size-1":0,"signals-blink-1":false,"signals-horz-1":0,"signals-vert-1":0,"signals-hide-edit-1":false,"signals-cond-2":"==","signals-val-2":true,"signals-icon-2":"/vis/signals/lowbattery.png","signals-icon-size-2":0,"signals-blink-2":false,"signals-horz-2":0,"signals-vert-2":0,"signals-hide-edit-2":false},"style":{"left":"553px","top":"61px","width":"445px","height":"656px","background":"","background-color":"rgba(100,100,100,0.2)","z-index":"10","border-radius":"20px","border-style":"none","font-size":"16px","font-family":""},"widgetSet":"basic"},{"tpl":"tplHtml","data":{"visibility-cond":"==","visibility-val":1,"refreshInterval":"0","name":"Hinweis Tintenpackung","html":"<a target=\"_blank\" href=\"http://www.idealo.de/preisvergleich/OffersOfProduct/1057817_-t0807-multipack-6-farbig-c13t08074010-epson.html\">Multipack Epson T0807</a> (ca. 60€)","class":"pix_link","gestures-offsetX":0,"gestures-offsetY":0,"signals-cond-0":"==","signals-val-0":true,"signals-icon-0":"/vis/signals/lowbattery.png","signals-icon-size-0":0,"signals-blink-0":false,"signals-horz-0":0,"signals-vert-0":0,"signals-hide-edit-0":false,"signals-cond-1":"==","signals-val-1":true,"signals-icon-1":"/vis/signals/lowbattery.png","signals-icon-size-1":0,"signals-blink-1":false,"signals-horz-1":0,"signals-vert-1":0,"signals-hide-edit-1":false,"signals-cond-2":"==","signals-val-2":true,"signals-icon-2":"/vis/signals/lowbattery.png","signals-icon-size-2":0,"signals-blink-2":false,"signals-horz-2":0,"signals-vert-2":0,"signals-hide-edit-2":false},"style":{"left":"575px","top":"164px","z-index":"25","color":"rgba(250,250,250,1)","font-family":"","font-size":"14px","width":"auto","height":"26px","font-style":"oblique"},"widgetSet":"basic"},{"tpl":"tplHtml","data":{"visibility-cond":"==","visibility-val":1,"refreshInterval":"0","html":"Druckertinte","name":"Überschrift","signals-cond-0":"==","signals-val-0":true,"signals-icon-0":"/vis/signals/lowbattery.png","signals-icon-size-0":0,"signals-blink-0":false,"signals-horz-0":0,"signals-vert-0":0,"signals-hide-edit-0":false,"signals-cond-1":"==","signals-val-1":true,"signals-icon-1":"/vis/signals/lowbattery.png","signals-icon-size-1":0,"signals-blink-1":false,"signals-horz-1":0,"signals-vert-1":0,"signals-hide-edit-1":false,"signals-cond-2":"==","signals-val-2":true,"signals-icon-2":"/vis/signals/lowbattery.png","signals-icon-size-2":0,"signals-blink-2":false,"signals-horz-2":0,"signals-vert-2":0,"signals-hide-edit-2":false},"style":{"left":"83px","top":"22px","width":"200px","height":"29px","color":"rgba(250,250,250,1)","text-align":"left","text-shadow":"2px 3px rgba(250,250,250,0.2)","font-family":"RobotoCondensed-Regular, Futura","font-style":"italic","font-variant":"normal","font-weight":"normal","font-size":"25px","z-index":"40"},"widgetSet":"basic"},{"tpl":"tplHtml","data":{"visibility-cond":"==","visibility-val":1,"refreshInterval":"0","name":"Hinweis Tintenpackung Ersatz","html":"<a target=\"_blank\" href=\"http://www.idealo.de/preisvergleich/OffersOfProduct/2612885_-e111v-schwarz-farbe-mit-chip-vorteilspack-kmp.html\">KMP E111V</a> (ca. 22€)","class":"pix_link","gestures-offsetX":0,"gestures-offsetY":0,"signals-cond-0":"==","signals-val-0":true,"signals-icon-0":"/vis/signals/lowbattery.png","signals-icon-size-0":0,"signals-blink-0":false,"signals-horz-0":0,"signals-vert-0":0,"signals-hide-edit-0":false,"signals-cond-1":"==","signals-val-1":true,"signals-icon-1":"/vis/signals/lowbattery.png","signals-icon-size-1":0,"signals-blink-1":false,"signals-horz-1":0,"signals-vert-1":0,"signals-hide-edit-1":false,"signals-cond-2":"==","signals-val-2":true,"signals-icon-2":"/vis/signals/lowbattery.png","signals-icon-size-2":0,"signals-blink-2":false,"signals-horz-2":0,"signals-vert-2":0,"signals-hide-edit-2":false},"style":{"left":"577px","top":"437px","z-index":"25","color":"rgba(250,250,250,1)","font-family":"","font-size":"14px","width":"auto","height":"26px","font-style":"oblique"},"widgetSet":"basic"},{"tpl":"tplValueTimestamp","data":{"oid":"epson_stylus_px830.0.inks.cyan.level","visibility-cond":"==","visibility-val":1,"format_date":"DD.MM.YYYY hh:mm:ss","html_prepend":"<span style=\"font-size: 14px; line-height: 14px;\">Aktualisierung:&nbsp;&nbsp;</span>","name":"Letzte Aktualisierung (Cyan)","gestures-offsetX":0,"gestures-offsetY":0,"signals-cond-0":"==","signals-val-0":true,"signals-icon-0":"/vis/signals/lowbattery.png","signals-icon-size-0":0,"signals-blink-0":false,"signals-horz-0":0,"signals-vert-0":0,"signals-hide-edit-0":false,"signals-cond-1":"==","signals-val-1":true,"signals-icon-1":"/vis/signals/lowbattery.png","signals-icon-size-1":0,"signals-blink-1":false,"signals-horz-1":0,"signals-vert-1":0,"signals-hide-edit-1":false,"signals-cond-2":"==","signals-val-2":true,"signals-icon-2":"/vis/signals/lowbattery.png","signals-icon-size-2":0,"signals-blink-2":false,"signals-horz-2":0,"signals-vert-2":0,"signals-hide-edit-2":false,"is_milliseconds":true},"style":{"left":"88px","top":"511px","z-index":"21","color":"rgba(250,250,250,1)","font-family":"","text-align":"right","width":"390px","height":"22px","font-size":"12px","line-height":"14px"},"widgetSet":"basic"},{"tpl":"tplValueFloatBar","data":{"oid":"epson_stylus_px830.0.inks.cyan.level","visibility-cond":"==","visibility-val":1,"factor":"1","color":"cyan","name":"Cyan","reverse":true,"orientation":"vertical","min":"0","max":"100","signals-cond-0":"==","signals-val-0":true,"signals-icon-0":"/vis/signals/lowbattery.png","signals-icon-size-0":0,"signals-blink-0":false,"signals-horz-0":0,"signals-vert-0":0,"signals-hide-edit-0":false,"signals-cond-1":"==","signals-val-1":true,"signals-icon-1":"/vis/signals/lowbattery.png","signals-icon-size-1":0,"signals-blink-1":false,"signals-horz-1":0,"signals-vert-1":0,"signals-hide-edit-1":false,"signals-cond-2":"==","signals-val-2":true,"signals-icon-2":"/vis/signals/lowbattery.png","signals-icon-size-2":0,"signals-blink-2":false,"signals-horz-2":0,"signals-vert-2":0,"signals-hide-edit-2":false},"style":{"left":"87px","top":"193px","z-index":"22","color":"rgba(250,250,250,1);","width":"53px","height":"180px"},"widgetSet":"basic"},{"tpl":"tplValueFloatBar","data":{"oid":"epson_stylus_px830.0.inks.yellow.level","visibility-cond":"==","visibility-val":1,"factor":"1","color":"yellow","name":"Yellow","reverse":true,"orientation":"vertical","html":"Druckertinte","min":"0","max":"100","signals-cond-0":"==","signals-val-0":true,"signals-icon-0":"/vis/signals/lowbattery.png","signals-icon-size-0":0,"signals-blink-0":false,"signals-horz-0":0,"signals-vert-0":0,"signals-hide-edit-0":false,"signals-cond-1":"==","signals-val-1":true,"signals-icon-1":"/vis/signals/lowbattery.png","signals-icon-size-1":0,"signals-blink-1":false,"signals-horz-1":0,"signals-vert-1":0,"signals-hide-edit-1":false,"signals-cond-2":"==","signals-val-2":true,"signals-icon-2":"/vis/signals/lowbattery.png","signals-icon-size-2":0,"signals-blink-2":false,"signals-horz-2":0,"signals-vert-2":0,"signals-hide-edit-2":false},"style":{"left":"220px","top":"193px","z-index":"22","color":"rgba(250,250,250,1);","width":"53px","height":"180px"},"widgetSet":"basic"},{"tpl":"tplValueFloatBar","data":{"oid":"epson_stylus_px830.0.inks.cyanlight.level","visibility-cond":"==","visibility-val":1,"factor":"1","color":"#d5f1f1","name":"Light Cyan","reverse":true,"orientation":"vertical","html":"Druckertinte","min":"0","max":"100","signals-cond-0":"==","signals-val-0":true,"signals-icon-0":"/vis/signals/lowbattery.png","signals-icon-size-0":0,"signals-blink-0":false,"signals-horz-0":0,"signals-vert-0":0,"signals-hide-edit-0":false,"signals-cond-1":"==","signals-val-1":true,"signals-icon-1":"/vis/signals/lowbattery.png","signals-icon-size-1":0,"signals-blink-1":false,"signals-horz-1":0,"signals-vert-1":0,"signals-hide-edit-1":false,"signals-cond-2":"==","signals-val-2":true,"signals-icon-2":"/vis/signals/lowbattery.png","signals-icon-size-2":0,"signals-blink-2":false,"signals-horz-2":0,"signals-vert-2":0,"signals-hide-edit-2":false},"style":{"left":"153px","top":"193px","z-index":"22","color":"rgba(250,250,250,1);","width":"53px","height":"180px"},"widgetSet":"basic"},{"tpl":"tplValueFloatBar","data":{"oid":"epson_stylus_px830.0.inks.black.level","visibility-cond":"==","visibility-val":1,"factor":"1","color":"black","name":"Black","reverse":true,"orientation":"vertical","html":"Druckertinte","min":"0","max":"100","signals-cond-0":"==","signals-val-0":true,"signals-icon-0":"/vis/signals/lowbattery.png","signals-icon-size-0":0,"signals-blink-0":false,"signals-horz-0":0,"signals-vert-0":0,"signals-hide-edit-0":false,"signals-cond-1":"==","signals-val-1":true,"signals-icon-1":"/vis/signals/lowbattery.png","signals-icon-size-1":0,"signals-blink-1":false,"signals-horz-1":0,"signals-vert-1":0,"signals-hide-edit-1":false,"signals-cond-2":"==","signals-val-2":true,"signals-icon-2":"/vis/signals/lowbattery.png","signals-icon-size-2":0,"signals-blink-2":false,"signals-horz-2":0,"signals-vert-2":0,"signals-hide-edit-2":false},"style":{"left":"286px","top":"193px","z-index":"22","color":"rgba(250,250,250,1);","width":"53px","height":"180px"},"widgetSet":"basic"},{"tpl":"tplValueFloatBar","data":{"oid":"epson_stylus_px830.0.inks.magenta.level","visibility-cond":"==","visibility-val":1,"factor":"1","color":"Magenta","name":"Magenta","reverse":true,"orientation":"vertical","html":"Druckertinte","min":"0","max":"100","signals-cond-0":"==","signals-val-0":true,"signals-icon-0":"/vis/signals/lowbattery.png","signals-icon-size-0":0,"signals-blink-0":false,"signals-horz-0":0,"signals-vert-0":0,"signals-hide-edit-0":false,"signals-cond-1":"==","signals-val-1":true,"signals-icon-1":"/vis/signals/lowbattery.png","signals-icon-size-1":0,"signals-blink-1":false,"signals-horz-1":0,"signals-vert-1":0,"signals-hide-edit-1":false,"signals-cond-2":"==","signals-val-2":true,"signals-icon-2":"/vis/signals/lowbattery.png","signals-icon-size-2":0,"signals-blink-2":false,"signals-horz-2":0,"signals-vert-2":0,"signals-hide-edit-2":false},"style":{"left":"353px","top":"193px","z-index":"22","color":"rgba(250,250,250,1);","width":"53px","height":"180px"},"widgetSet":"basic"},{"tpl":"tplValueFloatBar","data":{"oid":"epson_stylus_px830.0.inks.magentalight.level","visibility-cond":"==","visibility-val":1,"factor":"1","color":"#ecb1eb","name":"Magenta Light","reverse":true,"orientation":"vertical","html":"Druckertinte","min":"0","max":"100","signals-cond-0":"==","signals-val-0":true,"signals-icon-0":"/vis/signals/lowbattery.png","signals-icon-size-0":0,"signals-blink-0":false,"signals-horz-0":0,"signals-vert-0":0,"signals-hide-edit-0":false,"signals-cond-1":"==","signals-val-1":true,"signals-icon-1":"/vis/signals/lowbattery.png","signals-icon-size-1":0,"signals-blink-1":false,"signals-horz-1":0,"signals-vert-1":0,"signals-hide-edit-1":false,"signals-cond-2":"==","signals-val-2":true,"signals-icon-2":"/vis/signals/lowbattery.png","signals-icon-size-2":0,"signals-blink-2":false,"signals-horz-2":0,"signals-vert-2":0,"signals-hide-edit-2":false},"style":{"left":"420px","top":"193px","z-index":"22","color":"rgba(250,250,250,1);","width":"53px","height":"180px"},"widgetSet":"basic"},{"tpl":"tplMetroTileString","data":{"visibility-cond":"<=","visibility-val":"20","bg_class_false":"bg-transparent","bg_class_true":"bg-transparent","icon_class_false":"icon-droplet","icon_class_true":"","badge_bg_class_false":"","badge_bg_class_true":"","icon_badge_false":"","icon_badge_true":"","brand_bg_class_false":"","brand_bg_class_true":"","name":"LowInk Warnung Magenta Light","icon_false":"","visibility-oid":"epson_stylus_px830.0.inks.magentalight.level","html":"Druckertinte","badge_top":"0","badge_left":"0","signals-cond-0":"==","signals-val-0":true,"signals-icon-0":"/vis/signals/lowbattery.png","signals-icon-size-0":0,"signals-blink-0":false,"signals-horz-0":0,"signals-vert-0":0,"signals-hide-edit-0":false,"signals-cond-1":"==","signals-val-1":true,"signals-icon-1":"/vis/signals/lowbattery.png","signals-icon-size-1":0,"signals-blink-1":false,"signals-horz-1":0,"signals-vert-1":0,"signals-hide-edit-1":false,"signals-cond-2":"==","signals-val-2":true,"signals-icon-2":"/vis/signals/lowbattery.png","signals-icon-size-2":0,"signals-blink-2":false,"signals-horz-2":0,"signals-vert-2":0,"signals-hide-edit-2":false},"style":{"left":"421px","top":"194px","border-style":"none","width":"47px","height":"54px","border-width":"","z-index":"30","background":"red"},"widgetSet":"metro"},{"tpl":"tplMetroTileString","data":{"visibility-cond":"<=","visibility-val":"20","bg_class_false":"bg-transparent","bg_class_true":"bg-transparent","icon_class_false":"icon-droplet","icon_class_true":"","badge_bg_class_false":"","badge_bg_class_true":"","icon_badge_false":"","icon_badge_true":"","brand_bg_class_false":"","brand_bg_class_true":"","name":"LowInk Warnung Magenta","icon_false":"","visibility-oid":"epson_stylus_px830.0.inks.magenta.level","html":"Druckertinte","badge_top":"0","badge_left":"0","gestures-offsetX":0,"gestures-offsetY":0,"signals-cond-0":"==","signals-val-0":true,"signals-icon-0":"/vis/signals/lowbattery.png","signals-icon-size-0":0,"signals-blink-0":false,"signals-horz-0":0,"signals-vert-0":0,"signals-hide-edit-0":false,"signals-cond-1":"==","signals-val-1":true,"signals-icon-1":"/vis/signals/lowbattery.png","signals-icon-size-1":0,"signals-blink-1":false,"signals-horz-1":0,"signals-vert-1":0,"signals-hide-edit-1":false,"signals-cond-2":"==","signals-val-2":true,"signals-icon-2":"/vis/signals/lowbattery.png","signals-icon-size-2":0,"signals-blink-2":false,"signals-horz-2":0,"signals-vert-2":0,"signals-hide-edit-2":false},"style":{"left":"354px","top":"194px","border-style":"none","width":"47px","height":"54px","border-width":"","z-index":"30","background":"red"},"widgetSet":"metro"},{"tpl":"tplMetroTileString","data":{"visibility-cond":"<=","visibility-val":"20","bg_class_false":"bg-transparent","bg_class_true":"bg-transparent","icon_class_false":"icon-droplet","icon_class_true":"","badge_bg_class_false":"","badge_bg_class_true":"","icon_badge_false":"","icon_badge_true":"","brand_bg_class_false":"","brand_bg_class_true":"","name":"LowInk Warnung Light Cyan","icon_false":"","visibility-oid":"epson_stylus_px830.0.inks.cyanlight.level","html":"Druckertinte","badge_top":"0","badge_left":"0","signals-cond-0":"==","signals-val-0":true,"signals-icon-0":"/vis/signals/lowbattery.png","signals-icon-size-0":0,"signals-blink-0":false,"signals-horz-0":0,"signals-vert-0":0,"signals-hide-edit-0":false,"signals-cond-1":"==","signals-val-1":true,"signals-icon-1":"/vis/signals/lowbattery.png","signals-icon-size-1":0,"signals-blink-1":false,"signals-horz-1":0,"signals-vert-1":0,"signals-hide-edit-1":false,"signals-cond-2":"==","signals-val-2":true,"signals-icon-2":"/vis/signals/lowbattery.png","signals-icon-size-2":0,"signals-blink-2":false,"signals-horz-2":0,"signals-vert-2":0,"signals-hide-edit-2":false},"style":{"left":"154px","top":"194px","border-style":"none","width":"47px","height":"54px","border-width":"","z-index":"30","background":"red"},"widgetSet":"metro"},{"tpl":"tplMetroTileString","data":{"visibility-cond":"<=","visibility-val":"20","bg_class_false":"bg-transparent","bg_class_true":"bg-transparent","icon_class_false":"icon-droplet","icon_class_true":"","badge_bg_class_false":"","badge_bg_class_true":"","icon_badge_false":"","icon_badge_true":"","brand_bg_class_false":"","brand_bg_class_true":"","name":"LowInk Warnung Cyan","icon_false":"","visibility-oid":"epson_stylus_px830.0.inks.cyan.level","badge_top":"0","badge_left":"0","signals-cond-0":"==","signals-val-0":true,"signals-icon-0":"/vis/signals/lowbattery.png","signals-icon-size-0":0,"signals-blink-0":false,"signals-horz-0":0,"signals-vert-0":0,"signals-hide-edit-0":false,"signals-cond-1":"==","signals-val-1":true,"signals-icon-1":"/vis/signals/lowbattery.png","signals-icon-size-1":0,"signals-blink-1":false,"signals-horz-1":0,"signals-vert-1":0,"signals-hide-edit-1":false,"signals-cond-2":"==","signals-val-2":true,"signals-icon-2":"/vis/signals/lowbattery.png","signals-icon-size-2":0,"signals-blink-2":false,"signals-horz-2":0,"signals-vert-2":0,"signals-hide-edit-2":false},"style":{"left":"88px","top":"194px","border-style":"none","width":"47px","height":"54px","border-width":"","z-index":"30","background":"red"},"widgetSet":"metro"},{"tpl":"tplMetroTileString","data":{"visibility-cond":"<=","visibility-val":"20","bg_class_false":"bg-transparent","bg_class_true":"bg-transparent","icon_class_false":"icon-droplet","icon_class_true":"","badge_bg_class_false":"","badge_bg_class_true":"","icon_badge_false":"","icon_badge_true":"","brand_bg_class_false":"","brand_bg_class_true":"","name":"LowInk Warnung Yellow","icon_false":"","visibility-oid":"epson_stylus_px830.0.inks.yellow.level","html":"Druckertinte","badge_top":"0","badge_left":"0","signals-cond-0":"==","signals-val-0":true,"signals-icon-0":"/vis/signals/lowbattery.png","signals-icon-size-0":0,"signals-blink-0":false,"signals-horz-0":0,"signals-vert-0":0,"signals-hide-edit-0":false,"signals-cond-1":"==","signals-val-1":true,"signals-icon-1":"/vis/signals/lowbattery.png","signals-icon-size-1":0,"signals-blink-1":false,"signals-horz-1":0,"signals-vert-1":0,"signals-hide-edit-1":false,"signals-cond-2":"==","signals-val-2":true,"signals-icon-2":"/vis/signals/lowbattery.png","signals-icon-size-2":0,"signals-blink-2":false,"signals-horz-2":0,"signals-vert-2":0,"signals-hide-edit-2":false},"style":{"left":"221px","top":"194px","border-style":"none","width":"47px","height":"54px","border-width":"","z-index":"30","background":"red"},"widgetSet":"metro"},{"tpl":"tplMetroTileString","data":{"visibility-cond":"<=","visibility-val":"20","bg_class_false":"bg-transparent","bg_class_true":"bg-transparent","icon_class_false":"icon-droplet","icon_class_true":"","badge_bg_class_false":"","badge_bg_class_true":"","icon_badge_false":"","icon_badge_true":"","brand_bg_class_false":"","brand_bg_class_true":"","name":"LowInk Warnung Black","icon_false":"","visibility-oid":"epson_stylus_px830.0.inks.black.level","html":"Druckertinte","badge_top":"0","badge_left":"0","signals-cond-0":"==","signals-val-0":true,"signals-icon-0":"/vis/signals/lowbattery.png","signals-icon-size-0":0,"signals-blink-0":false,"signals-horz-0":0,"signals-vert-0":0,"signals-hide-edit-0":false,"signals-cond-1":"==","signals-val-1":true,"signals-icon-1":"/vis/signals/lowbattery.png","signals-icon-size-1":0,"signals-blink-1":false,"signals-horz-1":0,"signals-vert-1":0,"signals-hide-edit-1":false,"signals-cond-2":"==","signals-val-2":true,"signals-icon-2":"/vis/signals/lowbattery.png","signals-icon-size-2":0,"signals-blink-2":false,"signals-horz-2":0,"signals-vert-2":0,"signals-hide-edit-2":false},"style":{"left":"287px","top":"194px","border-style":"none","width":"47px","height":"54px","border-width":"","z-index":"30","background":"red"},"widgetSet":"metro"},{"tpl":"tplHtml","data":{"visibility-cond":"==","visibility-val":1,"refreshInterval":"0","name":"Hinweis Tintenpackung","html":"Multipack Epson T0807","signals-cond-0":"==","signals-val-0":true,"signals-icon-0":"/vis/signals/lowbattery.png","signals-icon-size-0":0,"signals-blink-0":false,"signals-horz-0":0,"signals-vert-0":0,"signals-hide-edit-0":false,"signals-cond-1":"==","signals-val-1":true,"signals-icon-1":"/vis/signals/lowbattery.png","signals-icon-size-1":0,"signals-blink-1":false,"signals-horz-1":0,"signals-vert-1":0,"signals-hide-edit-1":false,"signals-cond-2":"==","signals-val-2":true,"signals-icon-2":"/vis/signals/lowbattery.png","signals-icon-size-2":0,"signals-blink-2":false,"signals-horz-2":0,"signals-vert-2":0,"signals-hide-edit-2":false},"style":{"left":"89px","top":"165px","z-index":"25","color":"rgba(250,250,250,1)","font-family":"","font-size":"14px","width":"182px","height":"26px","font-style":"oblique"},"widgetSet":"basic"},{"tpl":"tplHtml","data":{"visibility-cond":"==","visibility-val":1,"refreshInterval":"0","html":"<span style=\"float: left;\">Model: </span>\n<span style=\"float: right; font-size: 12px; line-height: 14px;\">{epson_stylus_px830.0.model}</span>\n<br>\n<span style=\"float: left;\">Bezeichnung: </span>\n<span style=\"float: right; font-size: 12px; line-height: 14px;\">{epson_stylus_px830.0.name}</span>\n<br>\n<span style=\"float: left;\">MAC-Adresse: </span>\n<span style=\"float: right; font-size: 12px; line-height: 14px;\">{epson_stylus_px830.0.mac}</span>\n<br>","gestures-offsetX":0,"gestures-offsetY":0,"name":"Model/Bezeichnung/MAC","signals-cond-0":"==","signals-val-0":true,"signals-icon-0":"/vis/signals/lowbattery.png","signals-icon-size-0":0,"signals-blink-0":false,"signals-horz-0":0,"signals-vert-0":0,"signals-hide-edit-0":false,"signals-cond-1":"==","signals-val-1":true,"signals-icon-1":"/vis/signals/lowbattery.png","signals-icon-size-1":0,"signals-blink-1":false,"signals-horz-1":0,"signals-vert-1":0,"signals-hide-edit-1":false,"signals-cond-2":"==","signals-val-2":true,"signals-icon-2":"/vis/signals/lowbattery.png","signals-icon-size-2":0,"signals-blink-2":false,"signals-horz-2":0,"signals-vert-2":0,"signals-hide-edit-2":false},"style":{"left":"86px","top":"79px","z-index":"15","color":"rgba(250,250,250,1)","font-family":"","font-size":"14px","width":"390px","height":"80px"},"widgetSet":"basic"},{"tpl":"tplValueFloat","data":{"oid":"epson_stylus_px830.0.inks.cyan.level","visibility-cond":"==","visibility-val":1,"is_comma":false,"factor":"1","html_append_plural":"%<br><br>{epson_stylus_px830.0.inks.cyan.cartridge}<br><br>Cyan","html_append_singular":"%<br><br>{epson_stylus_px830.0.inks.cyan.cartridge}<br><br>Cyan","html_prepend":"","name":"Cyan Info","is_tdp":false,"signals-cond-0":"==","signals-val-0":true,"signals-icon-0":"/vis/signals/lowbattery.png","signals-icon-size-0":0,"signals-blink-0":false,"signals-horz-0":0,"signals-vert-0":0,"signals-hide-edit-0":false,"signals-cond-1":"==","signals-val-1":true,"signals-icon-1":"/vis/signals/lowbattery.png","signals-icon-size-1":0,"signals-blink-1":false,"signals-horz-1":0,"signals-vert-1":0,"signals-hide-edit-1":false,"signals-cond-2":"==","signals-val-2":true,"signals-icon-2":"/vis/signals/lowbattery.png","signals-icon-size-2":0,"signals-blink-2":false,"signals-horz-2":0,"signals-vert-2":0,"signals-hide-edit-2":false,"digits":"0"},"style":{"left":"88px","top":"380px","z-index":"25","color":"rgba(250,250,250,1)","width":"53px","height":"97px","font-family":"","font-size":"14px","text-align":"center"},"widgetSet":"basic"},{"tpl":"tplValueFloat","data":{"oid":"epson_stylus_px830.0.inks.cyanlight.level","visibility-cond":"==","visibility-val":1,"is_comma":false,"factor":"1","html_append_plural":"%<br><br>{epson_stylus_px830.0.inks.cyanlight.cartridge}<br><br>Cyan Light","html_append_singular":"%<br><br>{epson_stylus_px830.0.inks.cyanlight.cartridge}<br><br>Cyan Light","html_prepend":"","name":"Cyan Light Info","html":"Druckertinte","is_tdp":false,"signals-cond-0":"==","signals-val-0":true,"signals-icon-0":"/vis/signals/lowbattery.png","signals-icon-size-0":0,"signals-blink-0":false,"signals-horz-0":0,"signals-vert-0":0,"signals-hide-edit-0":false,"signals-cond-1":"==","signals-val-1":true,"signals-icon-1":"/vis/signals/lowbattery.png","signals-icon-size-1":0,"signals-blink-1":false,"signals-horz-1":0,"signals-vert-1":0,"signals-hide-edit-1":false,"signals-cond-2":"==","signals-val-2":true,"signals-icon-2":"/vis/signals/lowbattery.png","signals-icon-size-2":0,"signals-blink-2":false,"signals-horz-2":0,"signals-vert-2":0,"signals-hide-edit-2":false,"digits":"0"},"style":{"left":"154px","top":"380px","z-index":"25","color":"rgba(250,250,250,1)","width":"53px","height":"103px","font-family":"","font-size":"14px","text-align":"center"},"widgetSet":"basic"},{"tpl":"tplValueFloat","data":{"oid":"epson_stylus_px830.0.inks.yellow.level","visibility-cond":"==","visibility-val":1,"is_comma":false,"factor":"1","html_append_plural":"%<br><br>{epson_stylus_px830.0.inks.yellow.cartridge}<br><br>Yellow","html_append_singular":"%<br><br>{epson_stylus_px830.0.inks.yellow.cartridge}<br><br>Yellow","html_prepend":"","name":"Yellow Info","html":"Druckertinte","is_tdp":false,"signals-cond-0":"==","signals-val-0":true,"signals-icon-0":"/vis/signals/lowbattery.png","signals-icon-size-0":0,"signals-blink-0":false,"signals-horz-0":0,"signals-vert-0":0,"signals-hide-edit-0":false,"signals-cond-1":"==","signals-val-1":true,"signals-icon-1":"/vis/signals/lowbattery.png","signals-icon-size-1":0,"signals-blink-1":false,"signals-horz-1":0,"signals-vert-1":0,"signals-hide-edit-1":false,"signals-cond-2":"==","signals-val-2":true,"signals-icon-2":"/vis/signals/lowbattery.png","signals-icon-size-2":0,"signals-blink-2":false,"signals-horz-2":0,"signals-vert-2":0,"signals-hide-edit-2":false,"digits":"0"},"style":{"left":"221px","top":"380px","z-index":"25","color":"rgba(250,250,250,1)","width":"53px","height":"96px","font-family":"","font-size":"14px","text-align":"center"},"widgetSet":"basic"},{"tpl":"tplValueFloat","data":{"oid":"epson_stylus_px830.0.inks.black.level","visibility-cond":"==","visibility-val":1,"is_comma":false,"factor":"1","html_append_plural":"%<br><br>{epson_stylus_px830.0.inks.black.cartridge}<br><br>Black","html_append_singular":"%<br><br>{epson_stylus_px830.0.inks.black.cartridge}<br><br>Black","html_prepend":"","name":"Black Info","html":"Druckertinte","is_tdp":false,"signals-cond-0":"==","signals-val-0":true,"signals-icon-0":"/vis/signals/lowbattery.png","signals-icon-size-0":0,"signals-blink-0":false,"signals-horz-0":0,"signals-vert-0":0,"signals-hide-edit-0":false,"signals-cond-1":"==","signals-val-1":true,"signals-icon-1":"/vis/signals/lowbattery.png","signals-icon-size-1":0,"signals-blink-1":false,"signals-horz-1":0,"signals-vert-1":0,"signals-hide-edit-1":false,"signals-cond-2":"==","signals-val-2":true,"signals-icon-2":"/vis/signals/lowbattery.png","signals-icon-size-2":0,"signals-blink-2":false,"signals-horz-2":0,"signals-vert-2":0,"signals-hide-edit-2":false,"digits":"0"},"style":{"left":"287px","top":"380px","z-index":"25","color":"rgba(250,250,250,1)","width":"53px","height":"96px","font-family":"","font-size":"14px","text-align":"center"},"widgetSet":"basic"},{"tpl":"tplValueFloat","data":{"oid":"epson_stylus_px830.0.inks.magenta.level","visibility-cond":"==","visibility-val":1,"is_comma":false,"factor":"1","html_append_plural":"%<br><br>{epson_stylus_px830.0.inks.magenta.cartridge}<br><br>Magenta","html_append_singular":"%<br><br>{epson_stylus_px830.0.inks.magenta.cartridge}<br><br>Magenta","html_prepend":"","name":"Magenta Info","html":"Druckertinte","is_tdp":false,"signals-cond-0":"==","signals-val-0":true,"signals-icon-0":"/vis/signals/lowbattery.png","signals-icon-size-0":0,"signals-blink-0":false,"signals-horz-0":0,"signals-vert-0":0,"signals-hide-edit-0":false,"signals-cond-1":"==","signals-val-1":true,"signals-icon-1":"/vis/signals/lowbattery.png","signals-icon-size-1":0,"signals-blink-1":false,"signals-horz-1":0,"signals-vert-1":0,"signals-hide-edit-1":false,"signals-cond-2":"==","signals-val-2":true,"signals-icon-2":"/vis/signals/lowbattery.png","signals-icon-size-2":0,"signals-blink-2":false,"signals-horz-2":0,"signals-vert-2":0,"signals-hide-edit-2":false,"digits":"0"},"style":{"left":"354px","top":"380px","z-index":"25","color":"rgba(250,250,250,1)","width":"53px","height":"96px","font-family":"","font-size":"14px","text-align":"center"},"widgetSet":"basic"},{"tpl":"tplValueFloat","data":{"oid":"epson_stylus_px830.0.inks.magentalight.level","visibility-cond":"==","visibility-val":1,"is_comma":false,"factor":"1","html_append_plural":"%<br><br>{epson_stylus_px830.0.inks.magentalight.cartridge}<br><br>Magenta Light","html_append_singular":"%<br><br>{epson_stylus_px830.0.inks.magentalight.cartridge}<br><br>Magenta Light","html_prepend":"","name":"Magenta Light Info","html":"Druckertinte","is_tdp":false,"signals-cond-0":"==","signals-val-0":true,"signals-icon-0":"/vis/signals/lowbattery.png","signals-icon-size-0":0,"signals-blink-0":false,"signals-horz-0":0,"signals-vert-0":0,"signals-hide-edit-0":false,"signals-cond-1":"==","signals-val-1":true,"signals-icon-1":"/vis/signals/lowbattery.png","signals-icon-size-1":0,"signals-blink-1":false,"signals-horz-1":0,"signals-vert-1":0,"signals-hide-edit-1":false,"signals-cond-2":"==","signals-val-2":true,"signals-icon-2":"/vis/signals/lowbattery.png","signals-icon-size-2":0,"signals-blink-2":false,"signals-horz-2":0,"signals-vert-2":0,"signals-hide-edit-2":false,"digits":"0"},"style":{"left":"421px","top":"380px","z-index":"25","color":"rgba(250,250,250,1)","width":"53px","height":"113px","font-family":"","font-size":"14px","text-align":"center"},"widgetSet":"basic"},{"tpl":"tplImage","data":{"visibility-cond":"==","visibility-val":1,"refreshInterval":"0","refreshOnWakeUp":"false","refreshOnViewChange":"false","name":"idealo.de Preisechart Ersatz","src":"http://cdn.idealo.com/folder/Product/2612/8/2612885/s1_pricetrendFaceliftLarge.png","gestures-offsetX":0,"gestures-offsetY":0,"signals-cond-0":"==","signals-val-0":true,"signals-icon-0":"/vis/signals/lowbattery.png","signals-icon-size-0":0,"signals-blink-0":false,"signals-horz-0":0,"signals-vert-0":0,"signals-hide-edit-0":false,"signals-cond-1":"==","signals-val-1":true,"signals-icon-1":"/vis/signals/lowbattery.png","signals-icon-size-1":0,"signals-blink-1":false,"signals-horz-1":0,"signals-vert-1":0,"signals-hide-edit-1":false,"signals-cond-2":"==","signals-val-2":true,"signals-icon-2":"/vis/signals/lowbattery.png","signals-icon-size-2":0,"signals-blink-2":false,"signals-horz-2":0,"signals-vert-2":0,"signals-hide-edit-2":false},"style":{"left":"577px","top":"466px","z-index":"20","width":"405px","height":"233px"},"widgetSet":"basic"}]

Changelog

WORK IN PROGRESS

  • (copilot) Adapter requires node.js >= 22 now

0.4.0 (2026-03-06)

  • (iobroker-bot) Adapter requires node.js >= 20 now.
  • (copilot) Adapter requires admin >= 7.7.22 now
  • (copilot) Adapter requires js-controller >= 6.0.11 now
  • (mcm1957) Dependencies have been updated

0.3.0 (2024-04-15)

  • (mcm1957) Adapter requires node.js >= 18 and js-controller >= 5 now
  • (mcm1957) Dependencies have been updated

0.2.1 (2018-08-08)

  • (pix) 0.2.1 Typo fixed

0.2.0 (2018-08-03)

  • (pix) 0.2.0 Material design complete. Minor issues fixed

0.1.4 (2018-04-23)

  • (pix) settings window design

License

The MIT License (MIT)

Copyright (c) 2024-2026 iobroker-community-adapters iobroker-community-adapters@gmx.de
Copyright (c) 2022 pix

Permission is hereby granted, free of charge, to any person obtaining a copy of this software and associated documentation files (the "Software"), to deal in the Software without restriction, including without limitation the rights to use, copy, modify, merge, publish, distribute, sublicense, and/or sell copies of the Software, and to permit persons to whom the Software is furnished to do so, subject to the following conditions:

The above copyright notice and this permission notice shall be included in all copies or substantial portions of the Software.

THE SOFTWARE IS PROVIDED "AS IS", WITHOUT WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT. IN NO EVENT SHALL THE AUTHORS OR COPYRIGHT HOLDERS BE LIABLE FOR ANY CLAIM, DAMAGES OR OTHER LIABILITY, WHETHER IN AN ACTION OF CONTRACT, TORT OR OTHERWISE, ARISING FROM, OUT OF OR IN CONNECTION WITH THE SOFTWARE OR THE USE OR OTHER DEALINGS IN THE SOFTWARE.

Dank an die Erfinder des Basisskripts zum Parsen der Daten, Idittmar und MistyReblaus aus dem Homematic-Forum. :+1:
