Manage devices | ioBroker

Device adapter for ioBroker

Manage and create devices for using it in other adapters like material, iot, matter...

Important: enable tab in admin, like log and scripts

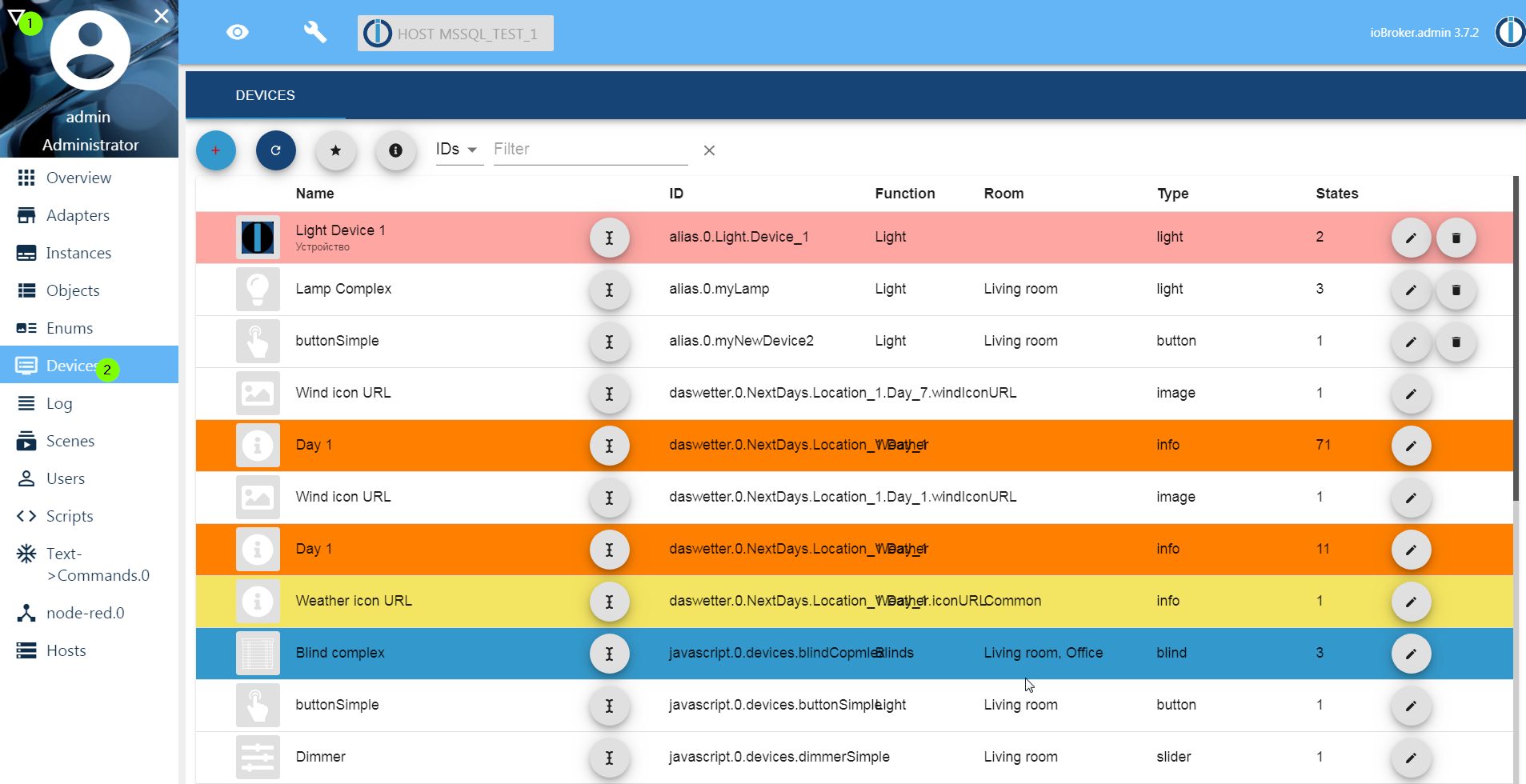

Screen

This adapter uses Sentry libraries to automatically report exceptions and code errors to the developers. For more details and for information on how to disable the error reporting, see Sentry-Plugin Documentation! Sentry reporting is used starting with js-controller 3.0.

ioBroker.devices Adapter User Manual

Overview

The ioBroker.devices adapter is a component of the ioBroker smart home platform designed to simplify device management by creating and managing virtual devices.

These virtual devices provide a standardized interface for physical devices, making it easier to integrate, script, visualize, and control devices across different manufacturers and protocols.

The adapter ensures consistency in data point naming and structure, reducing the need to modify scripts or visualizations when hardware changes.

It wraps any collection of states in ioBroker (physical or virtual) into well‑formed devices with rich information:

type, role, smartName, color, room, function, icon, unit and more

The result is consumed by dashboards (Material UI, VIS‑2), voice assistants (Alexa/Google), matter adapter, the iot/cloud adapter and scripts, giving you a clean, future‑proof object tree.

Note: The adapter does not poll hardware. It runs as a tab‑only “web” instance → zero CPU/RAM footprint.

Purpose

The ioBroker.devices adapter serves the following purposes:

Standardization: Creates virtual devices with consistent data point structures, regardless of the underlying hardware or protocol from different data points.
Simplified Maintenance: Allows users to swap physical devices without updating scripts or visualizations by remapping data points in the adapter.
Enhanced Compatibility: Integrates seamlessly with visualization adapters (e.g., Material UI, VIS), IoT adapters (e.g., Alexa, Google Home).
User-Friendly: Simplifies device management for beginners while offering flexibility for advanced users.

Standardization

Many adapters like mqtt, knx or similarly deliver data points with different names and structures. This adapter creates a virtual device with a consistent structure, making it easier to manage and visualize devices. It adds automatic roles, units and names to the states.

Simplified Maintenance

The ioBroker.devices adapter allows users to create virtual devices that can be easily remapped to different physical devices. This means that if you change a physical device, you don't need to update your scripts, visualizations or history settings; you just need to remap the data points in the adapter.

Enhanced Compatibility

The adapter knows what the devices should look like and how to use them. It creates a virtual device with the same structure as the physical device, making it easier to integrate with other adapters.

User-Friendly

The ioBroker.devices adapter is designed to be user-friendly, making it accessible for beginners while still offering advanced features for experienced users. The intuitive interface allows users to create and manage virtual devices without needing extensive technical knowledge.

Configuration

Once installed, configure the adapter via the Devices tab in the ioBroker admin interface.

Creating a Virtual Device

Open Devices Tab in admin.

Add Device

Click the "+" button to create a new virtual device.
Enter a Name for the device (e.g., "LivingRoomLight").
Select a Device Type (e.g., Light, Switch, Thermostat) from the predefined list.
Optionally, assign a Category (e.g., Lighting, Heating) for the organization.

Map Data Points:

For each function (e.g., on/off, brightness), map the virtual device’s data point to the corresponding state of the physical device (e.g., hm-rpc.0.12345.1.STATE for a Homematic switch).

Use the interface to browse and select states from other adapters.

Save: Click "Save" to create the virtual device. It will appear under alias.0. in the Objects tab.

Types of Devices

The ioBroker.devices adapter supports three main approaches to device creation:

Automatically Detected Devices

Some adapters (e.g., ioBroker.zigbee, ioBroker.hm-rpc) already provide a valid structure for the devices, and they will be detected automatically if some category (function or room) is assigned. Without the assigned category, the automatically detected device will not be processed.

Linked Devices

Linked devices are virtual devices manually created to mirror a specific physical device’s data points with ioBroker.linkeddevices.

It is suggested to use ioBroker.devices and alias.0 branch instead of linkeddevices.

Aliases

Aliases are lightweight virtual devices that act as shortcuts or simplified references to existing states without creating a full device structure.

You can create a new virtual device in a alias.0 branch. By selecting the device type, you should fill all required states (marked with *). Optionally, you can add not required states (e.g., humidity by temperature sensor). For every required state and filled optional state, the adapter creates a structure of aliases. If you created e.g. a temperature device named Temperature and provided both states (temperature and humidity) you will find the following states and channel in alias.0 branch:

alias.0.Temperature - channel
alias.0.Temperature.temperature - state with unit '°C'. It should have a virtual link to some real state with temperature. If you remove the alias in ioBroker.devices adapter, this state will stay without a link.
alias.0.Temperature.humidity - state with unit '%'. This will have a virtual link to real state (e.g., to hm-rpc.0.JHAGHGJJJ.1.HUMIDITY). If you remove alias in ioBroker.devices adapter, this state will be deleted.

Almost every device type could have additional states (indicators) for battery, connectivity, error and some more else. They are optional, but some adapters (e.g., material or matter) could interpret it.

For every state, you can provide all settings that aliases support:

Different states for read and write
Convert formula for read and write

Managing Devices

Edit Device: In the Devices tab, click the pencil icon next to a device to modify its name, type, category, color, name, icon or data point mappings.

Delete Device: Click the trash can icon to remove a virtual device. This does not affect the physical device or its adapter.

Organize Devices: Use categories to group devices (e.g., "Lighting", "Heating") for easier management in visualizations.

Type of devices

This adapter is built with the help of type-detector. All possible devices could be found here

Video

Changelog

4.2.1 (2026-09-09)

(@GermanBluefox) Fixed layout

4.2.0 (2026-08-28)

(@GermanBluefox) The devices of this adapter are now reachable in the ioBroker Device Manager: each one appears as a card with its name, icon, battery and reachability. Readings are shown on the card itself, and only states that can actually be operated become controls (switch, slider, select), so a read-only device has no control button at all. A control writes to the command state but reads from its feedback partner where the device has one, so a switch shows what the device reports rather than what it was last told. The instance already advertised Device Manager support, but answered none of its requests
(@GermanBluefox) Added the "Clean Light" theme: white cards on a light grey page with coloured icons, where a tile stays white when its device is on and only the label and the toggle turn blue
(@GermanBluefox) Added the "Tech Blue" theme: near-black tiles set apart by a lit blue outline, with monochrome blue icons and toggles
(@krobipd) Fixed "Create new folder" only showing a white screen since 4.0.0 (#679)
(@krobipd) Fixed the room column filter emptying the device list: it showed the function filter's value and wrote the picked room into the function filter (#680)
(@krobipd) Fixed an added state being deleted when it was edited without renaming it (#360)
(@krobipd) Moving, renaming or copying a device no longer deletes the original when the copy failed halfway through (#151, #513)
(@GermanBluefox) A failed copy is only cleaned up when its target path was free beforehand, so renaming a device onto an existing name cannot delete that device's objects
(@krobipd) Manually added states are now deleted together with their device, instead of staying behind as ghost objects after a move, rename or delete (#684)
(@krobipd) Cancel in the device editor now really cancels: deleting a state and picking a device icon are applied on Save instead of the moment they are clicked
(@krobipd) The read/write function preview shows boolean results and reports an invalid formula, instead of staying empty in both cases (#683)
(@krobipd) A string-typed alias no longer inherits min/max/step from its source, which made js-controller warn about an invalid object on every check (#682)
(@GermanBluefox) An alias or linked state now takes its type from the source wherever the device type allows more than one, so a thermostat or air conditioner that spells its modes out instead of numbering them is no longer written back as a number (#614). Needs the matching @iobroker/type-detector release
(@krobipd) A linkeddevices state now inherits the real range of its source instead of a hard 0...100, so a linked thermostat no longer shows 0...100 instead of e.g. 5...35
(@krobipd) TreeView.getDerivedStateFromProps returns its derived state instead of mutating the state it was handed, which React 19 does not guarantee to keep

4.1.1 (2026-08-17)

(@GermanBluefox) Fixed states being written without common.read and common.write, which every state object must carry: the "add state" dialog left both out for the deprecated file type, and dropped them from any state it edited that did not have them yet (#535, #533, #463)
(@GermanBluefox) States written by earlier versions have the two attributes added once when the device list is loaded. What is missing is taken from the device type and from the aliased source, so a state the device really can write does not turn read-only

4.1.0 (2026-08-16)

(@Apollon77) Added support for new device types
(@GermanBluefox) Datapoints added to an alias device by hand now reach the widget GUI, so a tank can show the litres it has left next to its fill level
(@GermanBluefox) The tank tile shows that second reading where it used to print its fill level a second time
(@GermanBluefox) Fixed the settings button of a 2x0.5 tank tile sitting in the middle of the tile instead of in its top-right corner

4.0.2 (2026-08-10)

(@SimonFischer04) Added WindowTilt support in the widgets GUI (#609)
(@GermanBluefox) Added min/max values (last 24 hours or today) for widgets with history (#610)
(@GermanBluefox) Reworked the "Blue dark" theme into a deep navy look and gave the category icons a coloured round badge
(@GermanBluefox) Added role icons for UV index, knots, rpm, operating hours and W/kW/Wh
(@GermanBluefox) The device list now shows the icon configured for a widget, and falls back to the role icon instead of the generic type icon
(@GermanBluefox) Info devices are no longer hidden by default; the "i" button in the toolbar now shows whether the filter is active
(@GermanBluefox) Fixed widgets vanishing from the GUI when they were assigned to a category that no longer exists
(@GermanBluefox) Fixed categories being dropped as empty although widgets had been moved into them
(@GermanBluefox) Fixed the "record history" switch: it now follows the alias to the recorded source and is highlighted while recording
(@GermanBluefox) Fixed clipped values in the wind widget
(@GermanBluefox) Fixed emoji icons sitting off-centre in the category badges and header
(@GermanBluefox) Fixed an alias assignment being dropped silently when saving a device whose state was not cached yet
(@GermanBluefox) Implemented user-specific views
(@Apollon77) Added widgets for button, buttonSensor, camera and vacuumCleaner, which were shown as "Widget type not supported" before
(@Apollon77) Added mute and the separate volume feedback state (VOLUME_ACTUAL) to the media player widget
(@Apollon77) Added the missing tilt controls to the blind widgets: tilt now works for button blinds too, has a stop button, and uses the min/max of the state instead of assuming percent
(@Apollon77) Added an active icon for windowTilt
(@Apollon77) The light widget now shows the real state from ON_ACTUAL instead of echoing the commanded value
(@Apollon77) Fixed image widgets: the configured defaults were ignored until the settings dialog was opened once, and the refresh button was answered from the cache
(@Apollon77) Fixed newer device types (windowTilt, camera, percentage, fillLevel, …) landing in the "other" group when auto-grouping is switched on
(@Apollon77) Fixed the type of created alias states: defaultType is now honoured, so the ERROR state is no longer created as boolean
(@Apollon77) Fixed the air conditioner editor showing the swing state twice and writing it twice on save
(@Apollon77) Fixed the enum assignment of created devices: it ran once per state and not at all for devices with only optional states
(@Apollon77) Fixed the build and the CI (unresolvable react-input-color dependency, out-of-sync lock files, node versions)
